The SW Series is a professional managed PoE switch designed for high-performance AV-over-IP applications, combining high-power PoE, intelligent management, and optimized network performance in one solution.
8 × 100/1000Base-T PoE+ Ethernet Ports (Data + Power)
2 × 1G SFP Uplink Fiber Slots
1 × Console Port for Configuration and Debugging
20 Gbps (Non-Blocking)
14.8 Mpps
1/2 (+), 3/6 (-)
Power Indicator: PWR (Solid Green)
System Indicator: SYS (Flashing Green)
Green: 1000 Mbps
Yellow: 100 Mbps
Ports 1–8 support IEEE 802.3at and are backward compatible with IEEE 802.3af standards
30W
125W
150W
AC 100–240V, 50/60Hz
6 kV
-40°C to 70°C
10%–90% RH, Non-Condensing
5%–95% RH, Non-Condensing
270 × 180 × 44 mm
< 2.5 kg
Desktop or 0.5U 19-inch Rack-Mount Installation
16 × 100/1000Base-T PoE+ Ethernet Ports (Data + Power)
2 × 1G SFP Uplink Fiber Slots
1 × Console Port for Configuration and Debugging
336 Gbps (Non-Blocking)
Power Indicator: PWR (Solid Green)
System Indicator: SYS (Flashing Green)
Green: 1000 Mbps
Yellow: 100/10 Mbps
Ports 1–16 support IEEE 802.3at and are backward compatible with IEEE 802.3af standards
-40°C to 70°C
30W
370W
450W
AC 100–240V, 50/60Hz
6 kV
0°C to 50°C
10%–90% RH, Non-Condensing
5%–95% RH, Non-Condensing
440 × 285 × 44.5 mm
< 5.0 kg / < 5.8 kg
Desktop or 1U 19-inch Rack-Mount Installation
24 × 100M/1G/2.5G Ethernet Ports (Data + Power)
6 × 10G SFP+ Uplink Fiber Slots (Backward Compatible with 1G SFP Modules)
1 × Console Port for Configuration and Debugging
598 Gbps (Non-Blocking)
Power Indicator: PWR (Solid Green)
System Indicator: SYS (Flashing Green)
Green: 1000 Mbps
Yellow: 100/10 Mbps
Ports 1–8 support IEEE 802.3bt (PoE++)
Ports 9–24 support IEEE 802.3at (PoE+)
Backward compatible with IEEE 802.3af/at PoE standards
720W
800W
-40°C to 70°C
AC 100–240V, 50/60Hz
6 kV
0°C to 50°C
10%–90% RH, Non-Condensing
5%–95% RH, Non-Condensing
440 × 285 × 44.5 mm
< 5.0 kg / < 5.8 kg
Desktop or 1U 19-inch Rack-Mount Installation
1. Smooth & Efficient Transmission
Non-blocking Gigabit backbone for smooth, high-bandwidth transmission.
2. Intelligent PoE Power Supply
Automatically protects connected devices and provides clean, stable power.
3. High-Power 95W Per Port
Up to 95W per port, with full backward compatibility.
4. PoE Port Priority Mechanism
Supports priority management for PoE ports.
5. Reliable & Easy-to-Operate Design
Plug-and-play design with enterprise-grade reliability, suitable for desktop or rack installation.
6. Designed for Professional AV Systems

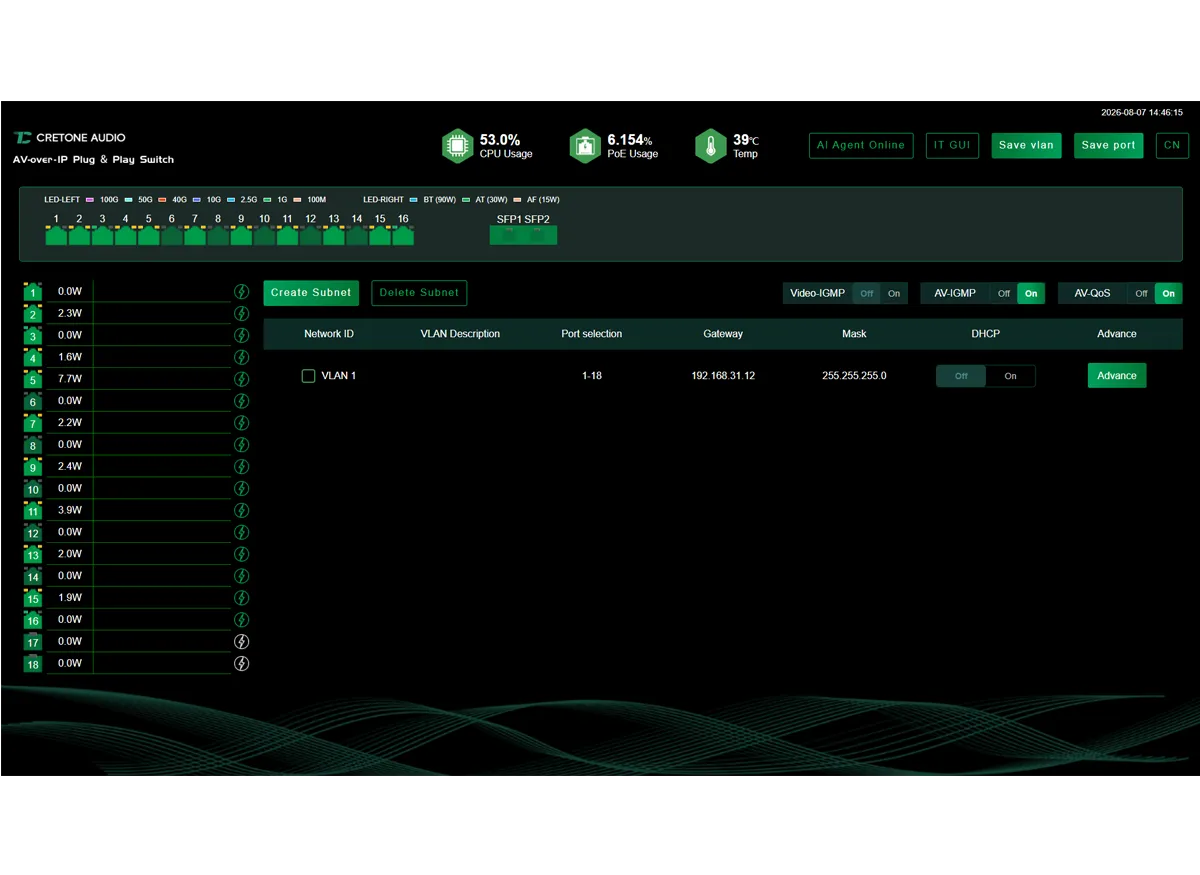

Features a simple and efficient graphical user interface (GUI), enabling intuitive configuration of VLANs, PoE power cycling, port management, and other network settings. Supports professional AV networking features, including AV-optimized IGMP, QoS, and Link Aggregation (LAG). Optimized with AV-over-IP protocols such as Dante, AES67, and NDI.
