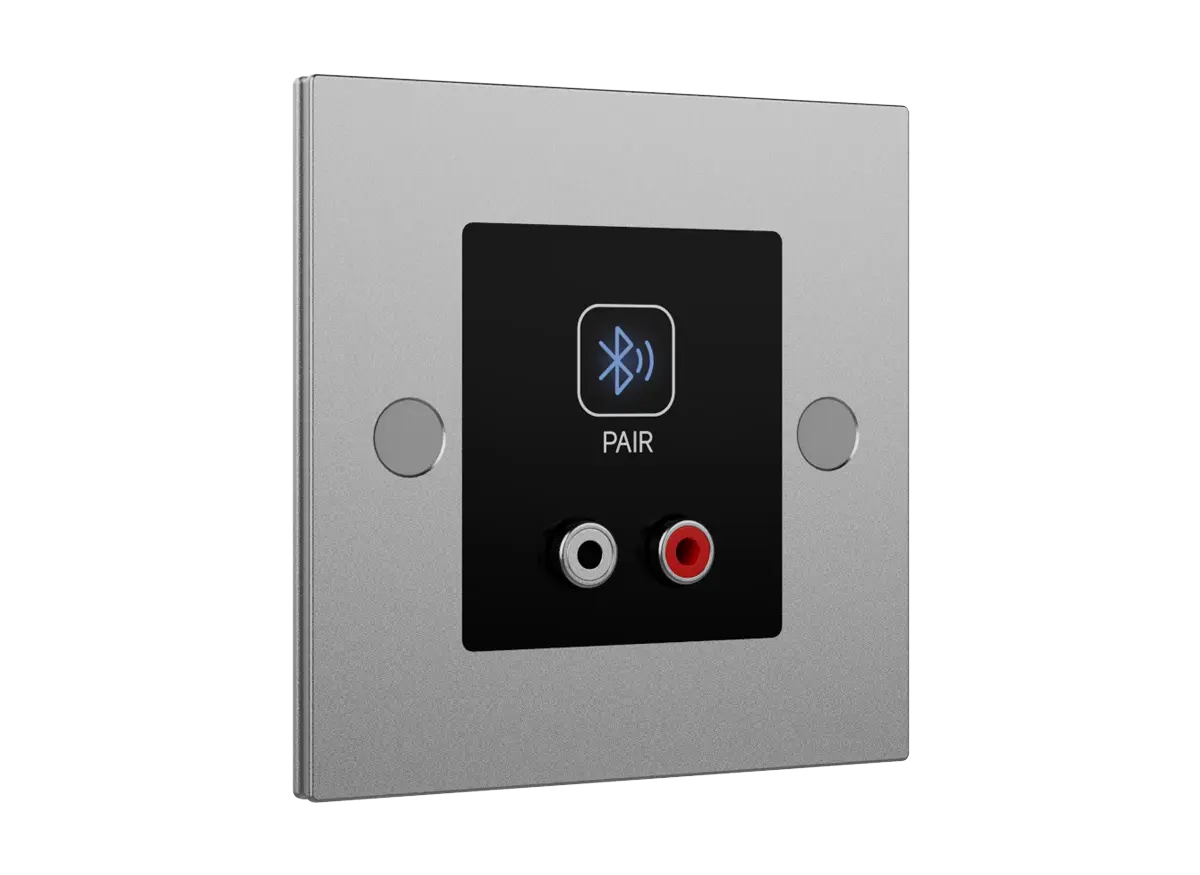

BT22D Dante Converter

The BT22D is a PoE-powered wall panel that converts Bluetooth or stereo signals to Dante/AES67 digital signals, with Bluetooth as the highest priority. It simplifies installation with a single network cable for both power and audio, offers easy Bluetooth pairing via a touch button, and supports customizable open APIs for flexible integration.

Specification of BT22D Dante Converter

BT22D-U
BT22D-E
  • interface dante

Bluetooth and Dante/AES67 Conversion;

High-Priority Bluetooth;

PoE Power Supply;

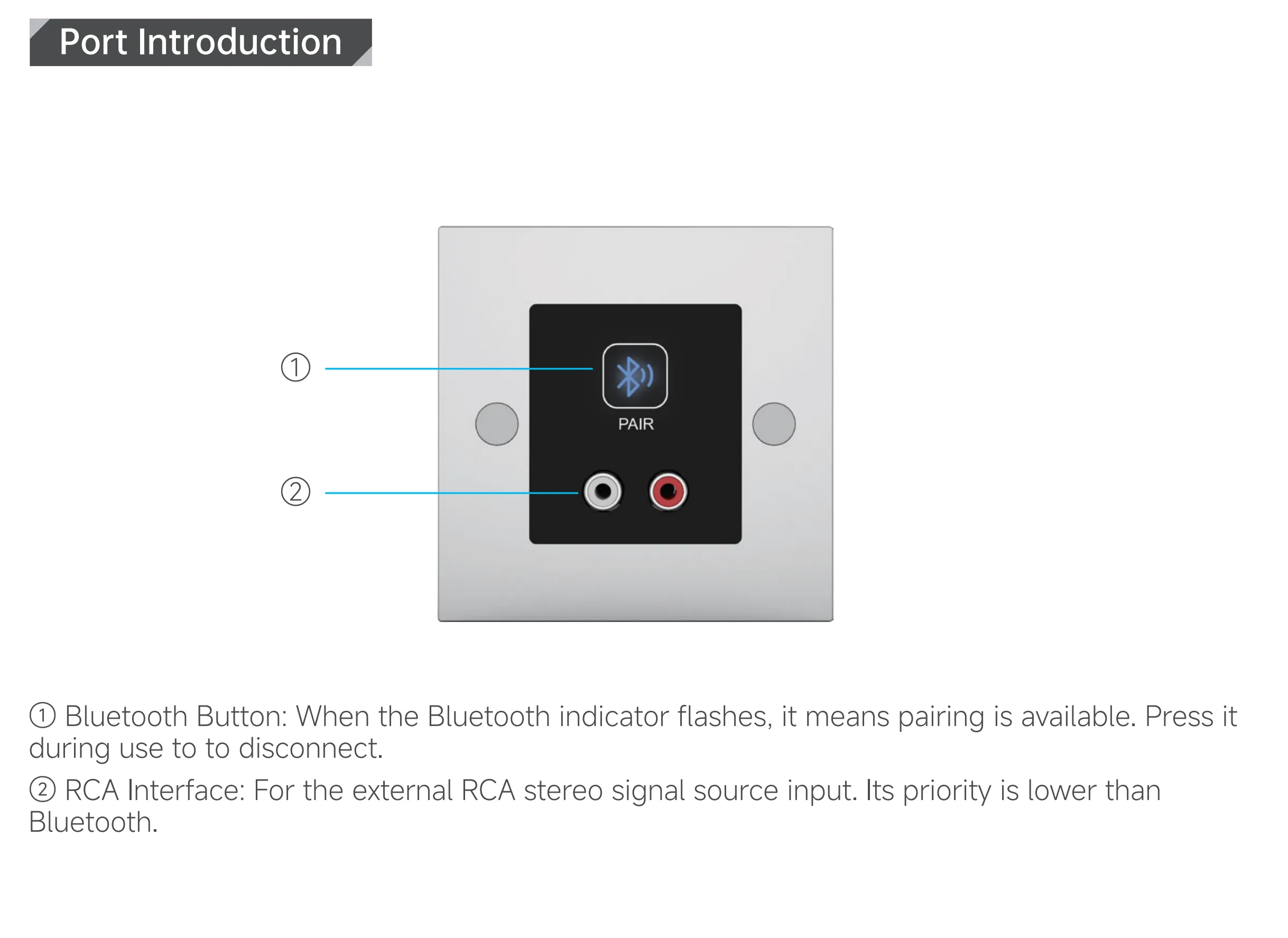

Easy Bluetooth Pairing;

Customizable Bluetooth Name;

Open API Support.

PDF Download
Bluetooth Channels

2

Dante Channels

2

RCA Channels

Stereo (Digital and Analog)

Sampling Rate

48kHz

Bit Depth

24bit

Bluetooth Standard

v5.0

Transmit Power

9dBm

Power Supply

IEEE 802.3af PoE

Device Latency

<2ms

Dimensions

115x70x32.5mm (L x W x D)

  • interface dante

Bluetooth and Dante/AES67 Conversion;

High-Priority Bluetooth;

PoE Power Supply;

Easy Bluetooth Pairing;

Customizable Bluetooth Name;

Open API Support.

PDF Download
Bluetooth Channels

2

Dante Channels

2

RCA Channels

Stereo (Digital and Analog)

Sampling Rate

48kHz

Bit Depth

24bit

Bluetooth Standard

v5.0

Transmit Power

9dBm

Power Supply

IEEE 802.3af PoE

Device Latency

<2ms

Dimensions

86x86x32.5mm (L x W x D)
