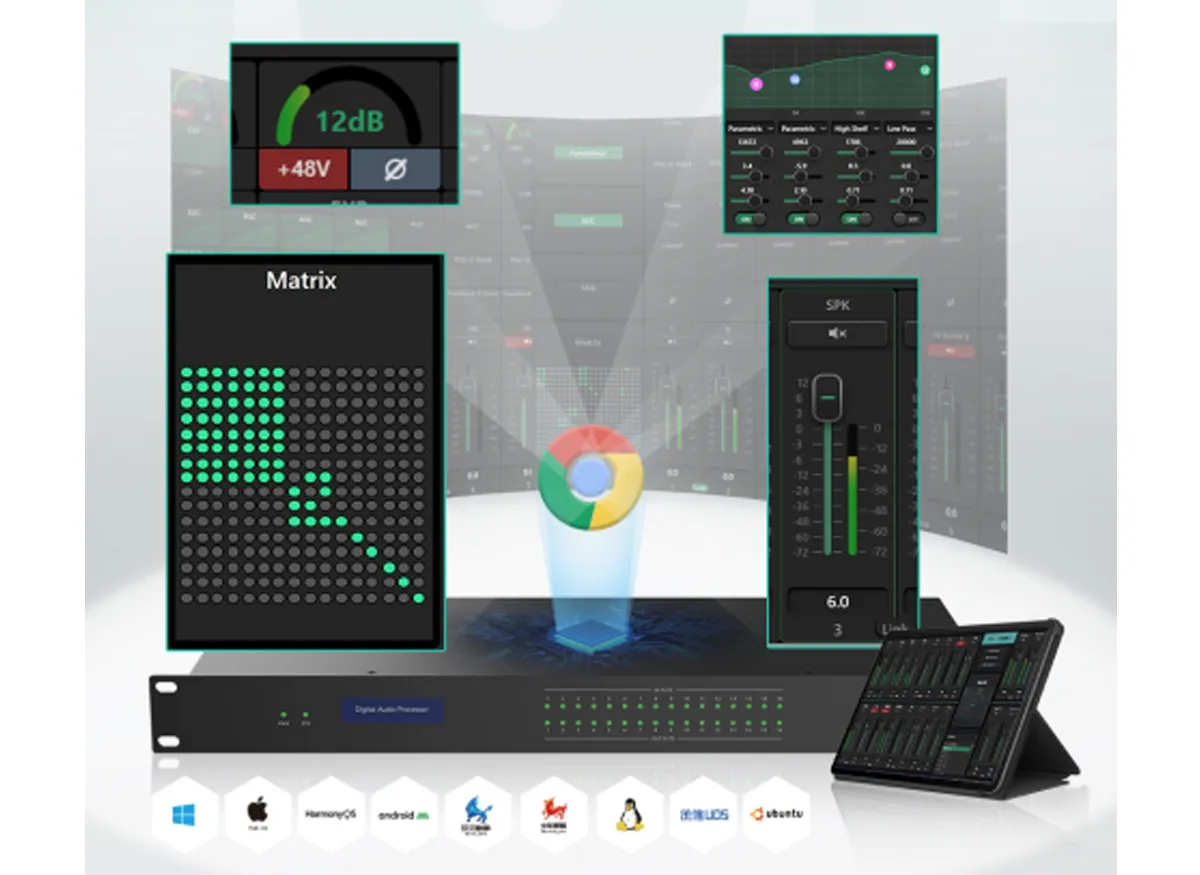

Web-based DSP Matrix TJ

TJ Series is a highly compatible DSP designed to enhance both the efficiency and quality of audio signal management across any browsers
Whether used in conference systems, muti-media installations, or complex AV integration, it delivers precise signal control,and flexible system interaction without delay.
Specification

Specification of Web-based DSP Matrix TJ

TJ0808
TJ1616

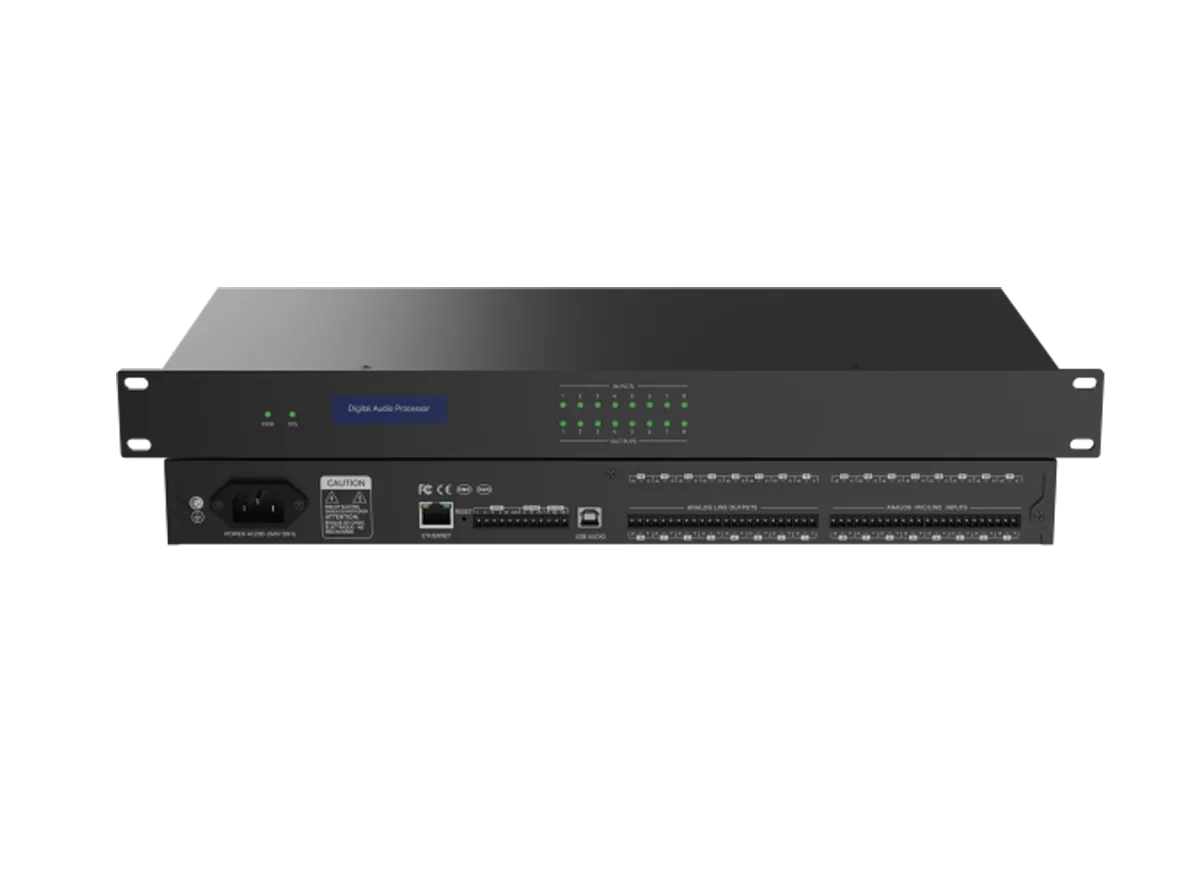

  • Web based DSP Matrix TJ000 02
PDF Download
TJ0808
Analog Input/Output Channels

8x8

Sampling Rate

48 kHz

AD\DA Quantization Bit Depth

24Bit

Input Gain

0/6/12/18/24/30/36/42/48dB

Phantom Power

+48V/10mA

Frequency Respond(20~20kHz)

+0.1/-0.6dB

Maximum Level

+18dBu

THD+N

≤0.005% (1kHz, +4dBu A-weighted)

Noise Floor

≤-95dBu (A-weighted)

Input Dynamic Range

≥113dB

Output Dynamic Range

≥113dB

Common-mode Rejection Ratio

＞47dB (1kHz, 0dBu)

Output Crosstalk

-115dB (1kHz, 0dBu)

Input Impedance (balanced connection)

5.4kΩ

Output Impedance (balanced connection)

300Ω

System Latency

≤3ms

Operating Voltage

AC 200-240V, 50Hz

Operating Temperature

-15℃-45°℃

Dimensions (W×D×H)

482 x 200 x 45mm

Weight (Net/Gross)

2.8kg/3.8kg

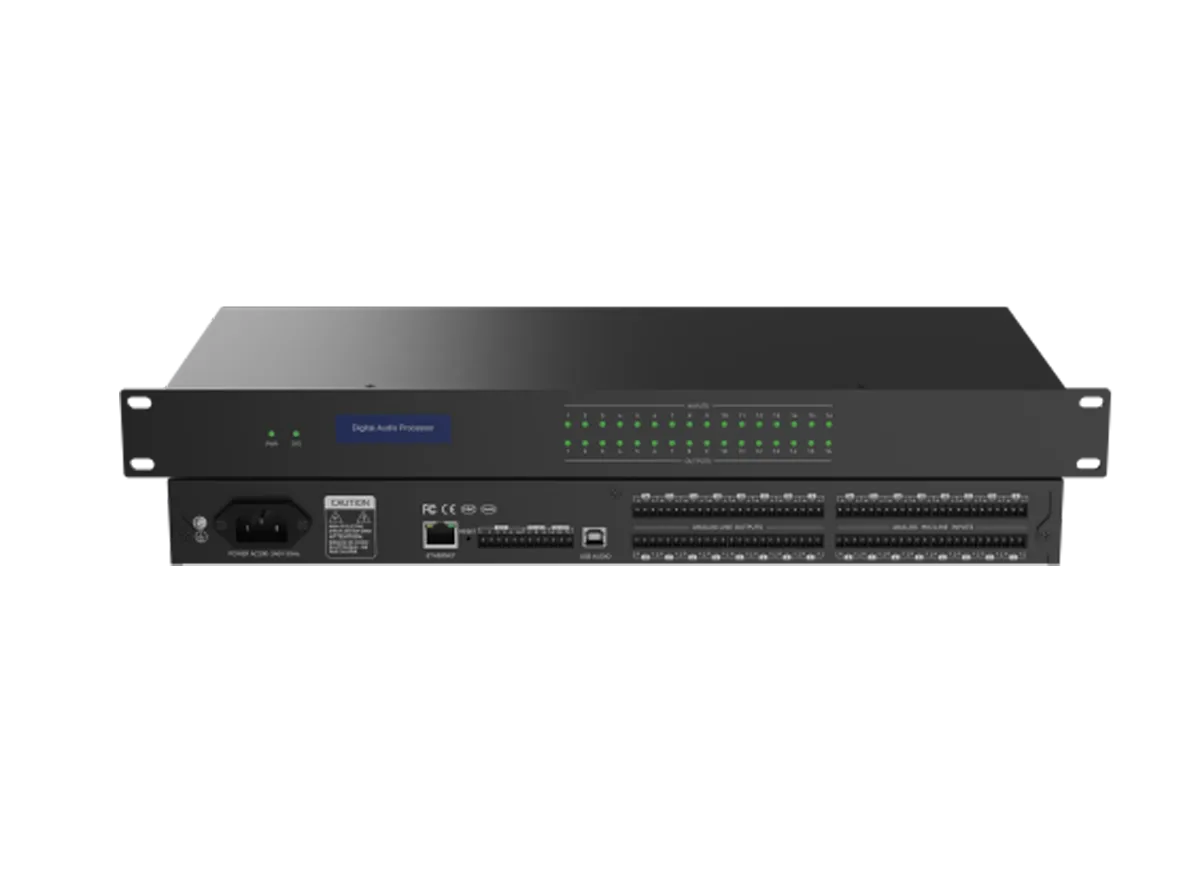

  • Web based DSP Matrix TJ000 03
PDF Download
TJ1616
Analog Input/Output Channels

16x16

Sampling Rate

48 kHz

AD\DA Quantization Bit Depth

24Bit

Input Gain

0/6/12/18/24/30/36/42/48dB

Phantom Power

+48V/10mA

Frequency Respond(20~20kHz)

+0.1/-0.6dB

Maximum Level

+18dBu

THD+N

≤0.005% (1kHz, +4dBu A-weighted)

Noise Floor

≤-95dBu (A-weighted)

Input Dynamic Range

≥113dB

Output Dynamic Range

≥113dB

Common-mode Rejection Ratio

＞47dB (1kHz, 0dBu)

Output Crosstalk

-115dB (1kHz, 0dBu)

Input Impedance (balanced connection)

5.4kΩ

Output Impedance (balanced connection)

300Ω

System Latency

≤3ms

Operating Voltage

AC 200-240V, 50Hz

Operating Temperature

-15℃-45°℃

Dimensions (W×D×H)

482 x 200 x 45mm

Weight (Net/Gross)

2.8kg/3.8kg
