PoE Speaker

The PoE speaker comes with a built-in power amplifier and digital signal processing (DSP) functionality. It supports both flush-mount and suspended installation methods, offering an optimized design that ensures easy installation for both high and low ceilings.

We also offer outdoor PoE speakers built for extreme weather. Featuring an injection-molded polypropylene cone, they are tested to endure rain, salt spray, and high temperatures. Additionally, our ceiling-mounted speakers provide wide coverage, high efficiency, easy installation, and exceptional audio quality for both music and voice.
Specification
Highlights

Specification of PoE Speaker

RPO65
RPO80
RPO43
RPO25
RPO45
PFS-6.5
PSS-6.5

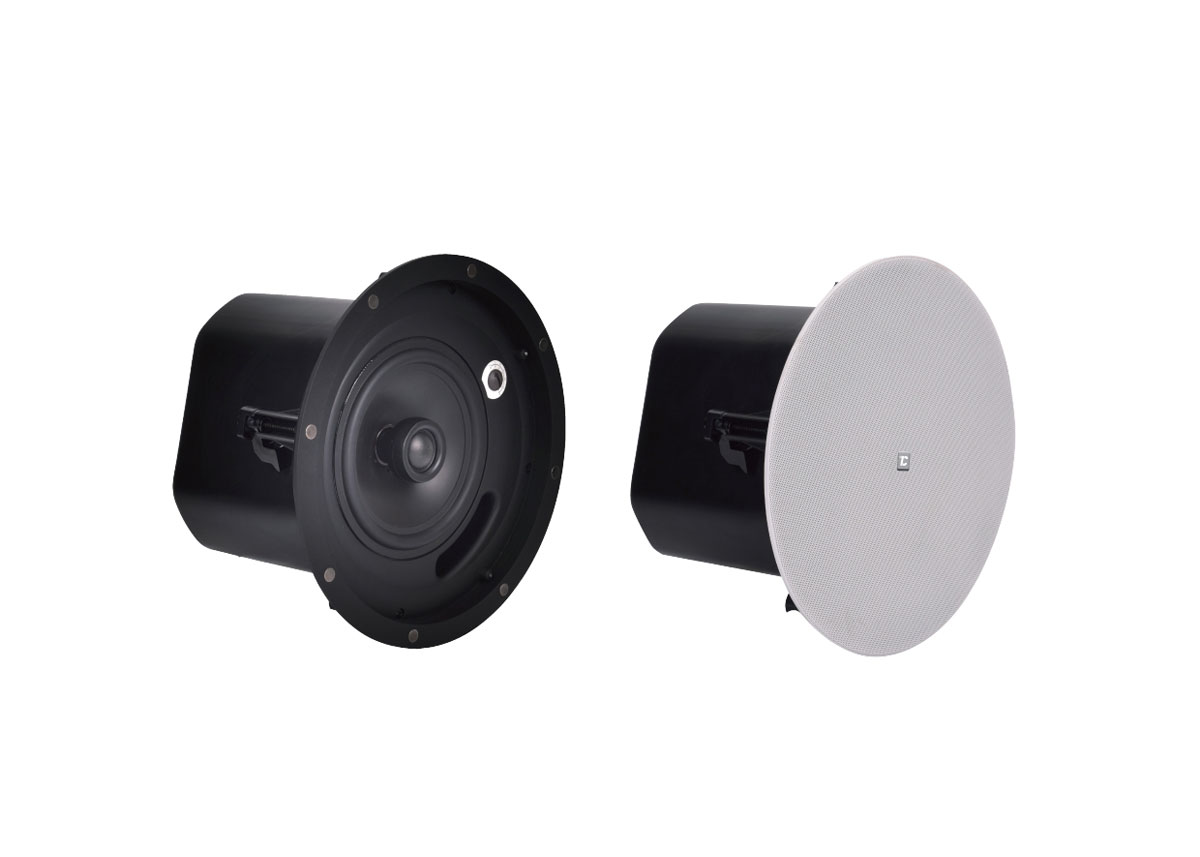

  • rpo65
PDF Download
Power Input

802.3af/802.3at/802.3bt compatible

Audio Transmission Protocol

Dante

Bass Unit

6.5-inch (polypropylene) composite basin body + NBR nitrile rubber suspension unit

Tweeter

1-inch silk membrane, neodymium magnet, 360-degree rotatable tweeter

Frequency Response

65Hz-20kHz, (±3dB)

System Impedance

8 Ohms

Output Sound Pressure (SPL)

89dB 1M/1W

Output Maximum Sound Pressure (SPL)

111 dB

Rated Output Power (RMS)

30 watts

Peak Output Power (PAK)

60 watts

Installation Opening Size

246MM round hole

Installation Depth

197MM

Box Material

iron grille + iron engineering box

Audio Input Port

RJ45

Product Weight

3.3KG

Installation Method

embedded and hanging installation

Additional Accessories

safety rope

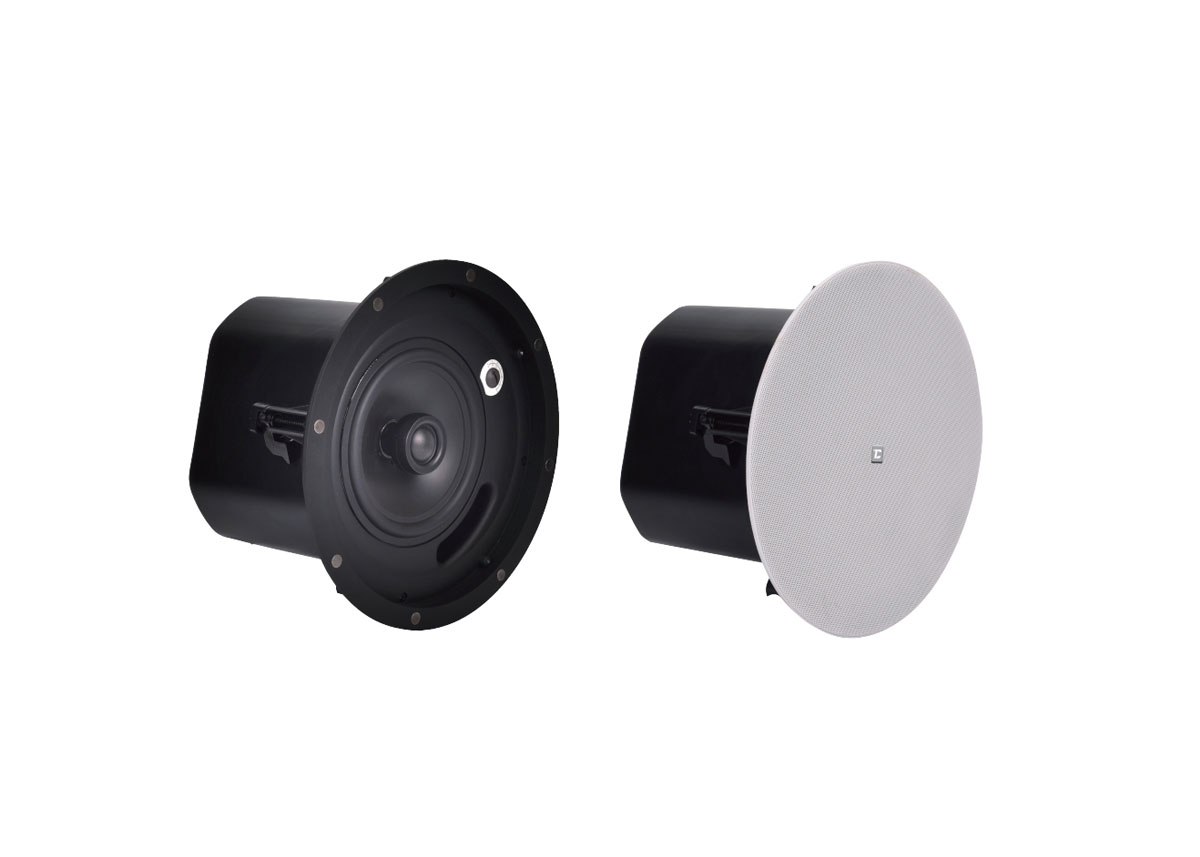

  • PoE Speaker
PDF Download
Power Input

802.3af/802.3at/802.3bt compatible

Audio Transmission Protocol

Dante

Bass Unit

8-inch

Tweeter

1-inch

Frequency Response

55Hz-20kHz, (±3dB)

System Impedance

8 Ohms

Output Sound Pressure (SPL)

89dB 1M/1W

Output Maximum Sound Pressure (SPL)

111 dB

Rated Output Power (RMS)

80 watts

Peak Output Power (PAK)

120 watts

Installation Opening Size

264MM round hole

Installation Depth

215MM

Box Material

iron grille + iron engineering box

Audio Input Port

RJ45

Product Weight

4.35KG

Installation Method

embedded and hanging installation

Additional Accessories

safety rope

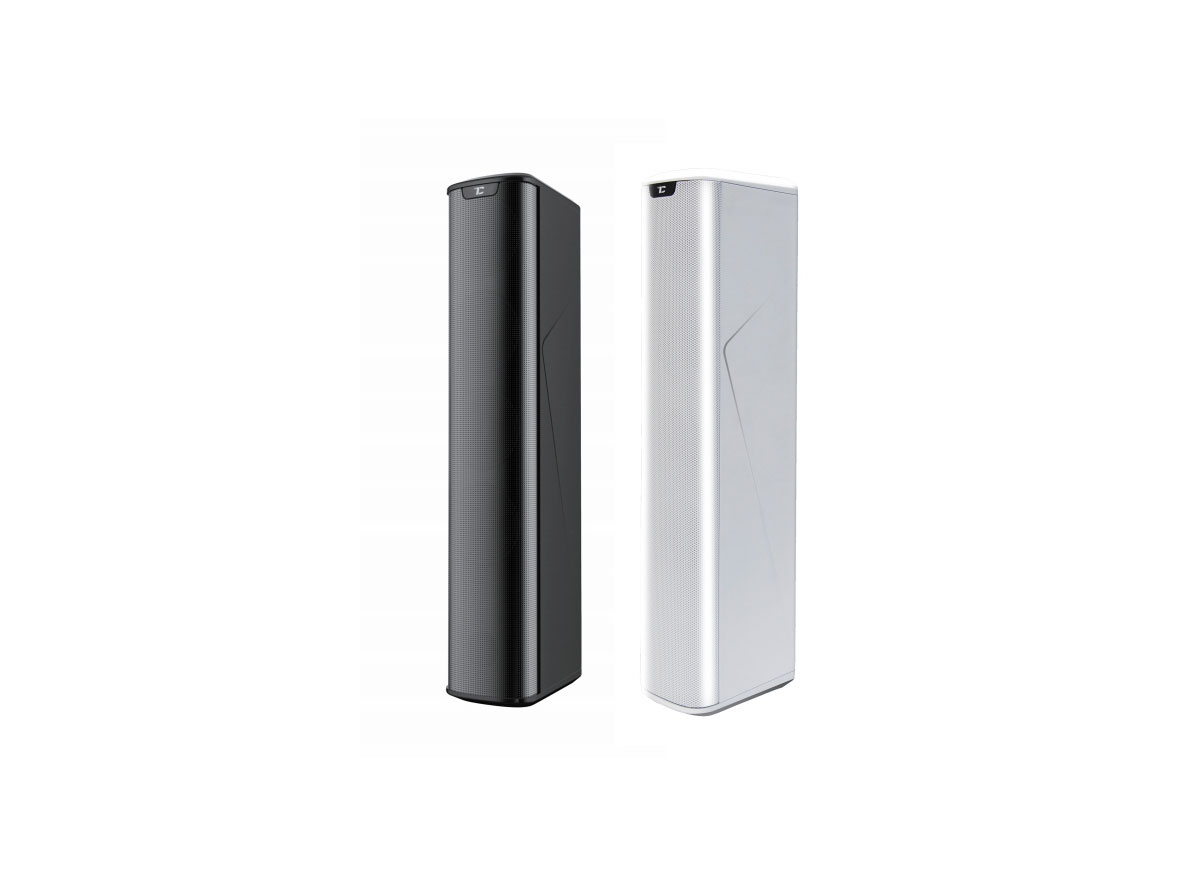

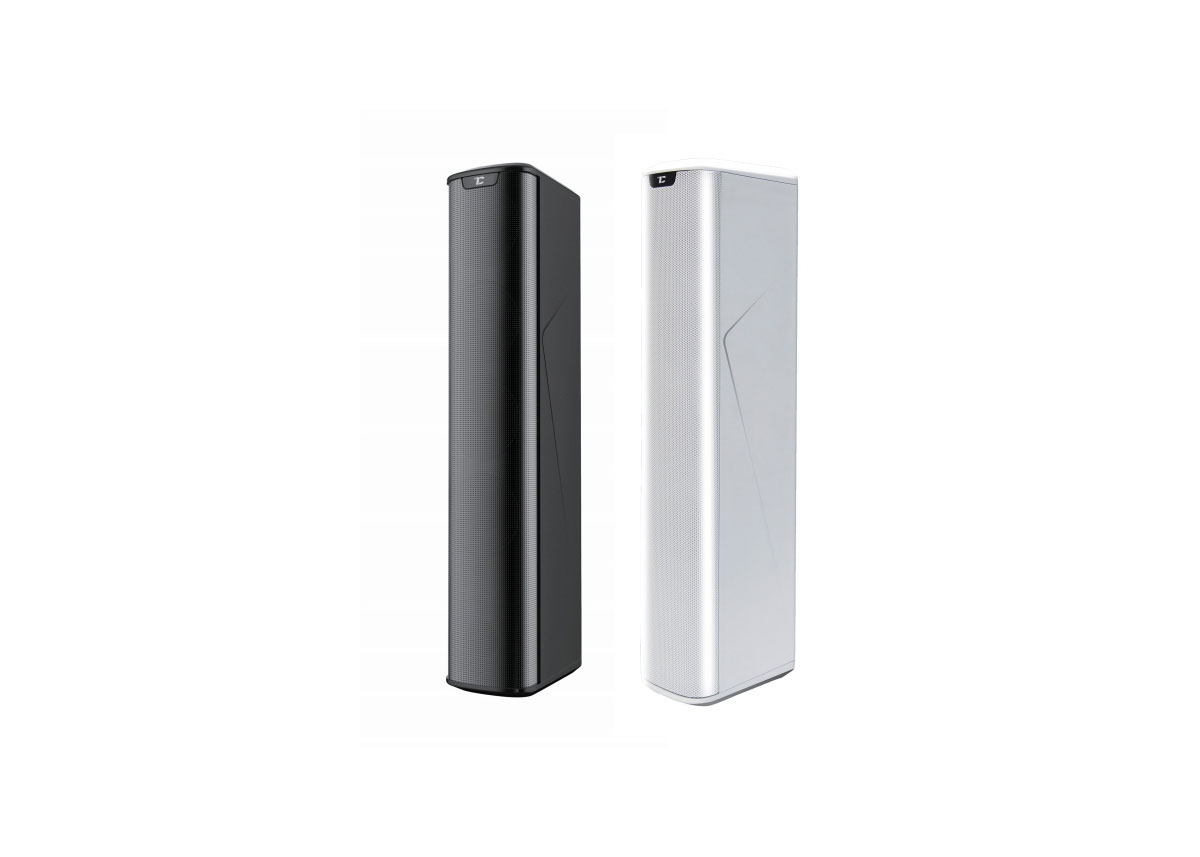

  • rpo43
PDF Download
Driver unit

4x3"


Rated power

100W


Frequency response

100Hz~20kHz


Sensitivity (1W/1m)

89dB


Input interface

RJ-45


Audio transmission protocol

Dante


Audio routing control

Dante Controller


Power input

802.3af/802.3at/802.3bt compatible


Heat dissipation

natural convection cooling


Shell material

ABS mixed glass fiber reinforced box


Grille material

Aluminum


Diffusion angle (-6dB)

vertical: 20°, horizontal: 120°


Mounting holes

10 M6


Installation system

Intelligent mounting bracket/ embedded mounting bracket


Color

black, white


Dimensions (height × width × depth)

530x100x150mm


Product net weight

4kg


Packing weight

5.28kg

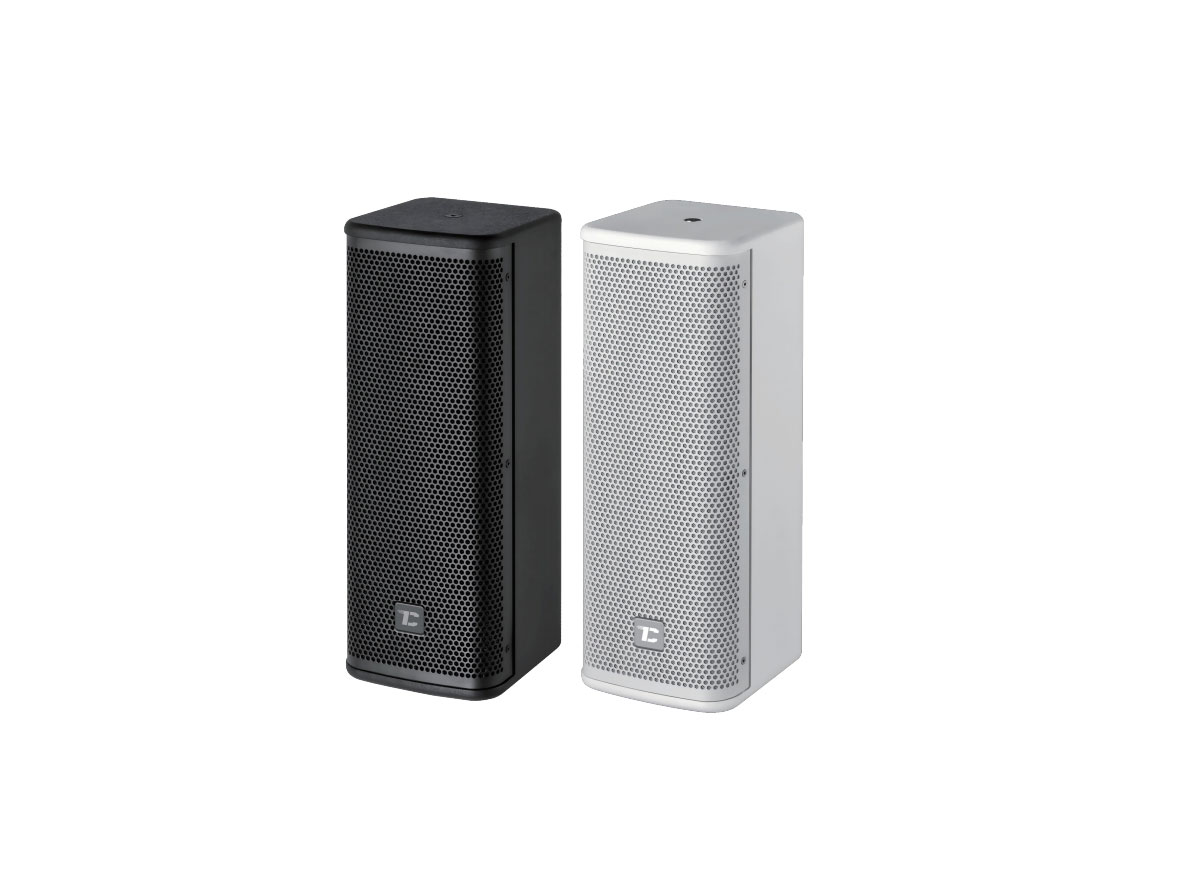

  • rpo25
PDF Download
Unit configuration

bass: 2x5.25", treble: 1x1"


Frequency response

130Hz-20KHz


Nominal impedance

8Ω


Rated power

90W


Peak power

360W

Sensitivity (@1W/1m)

93dB


Maximum sound pressure level

112dB

Coverage angle

90°(H)x60°(V)


Protection net

steel net


Wiring method

NL4*1+cable clamp*1


Dimensions (height × width × depth)

445 × 162 × 168mm


Weight

5.2kg

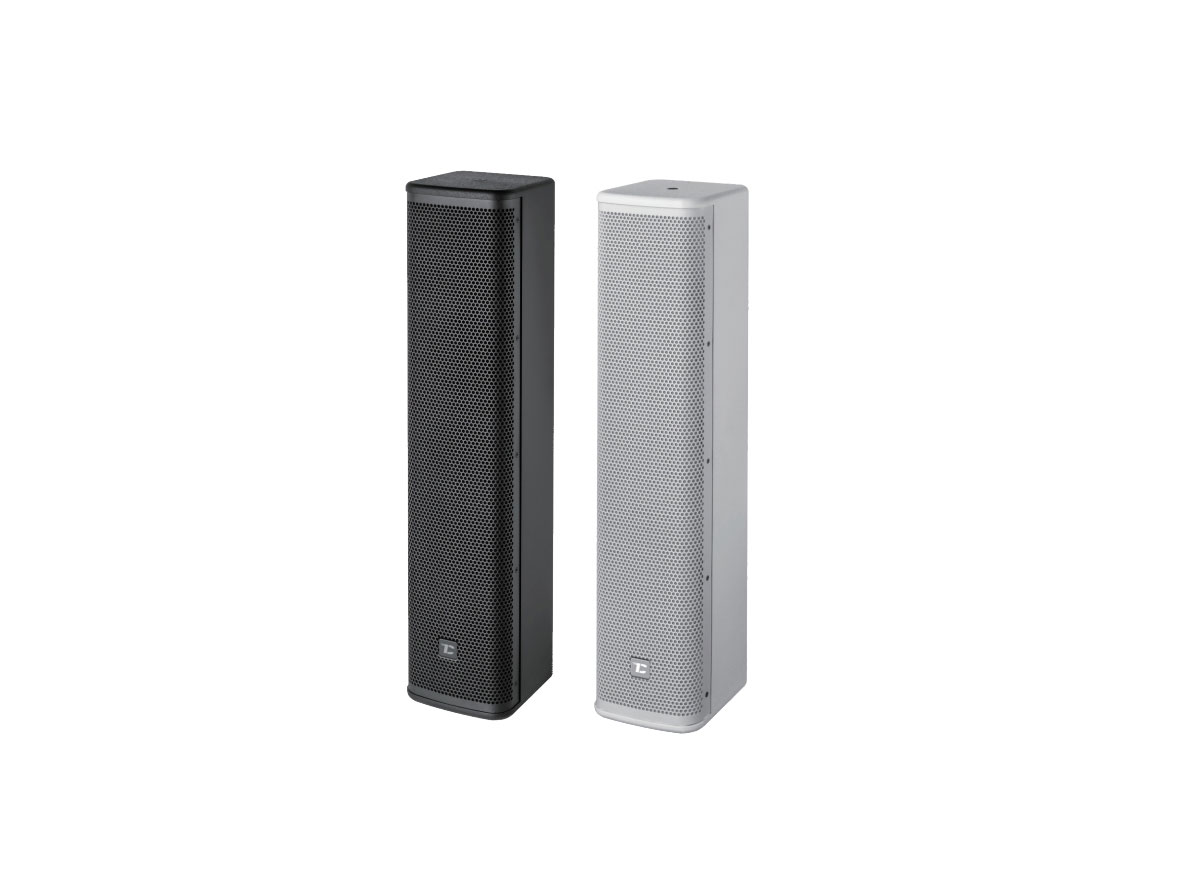

  • rpo45
PDF Download
Unit configuration

bass: 4x5.25", treble: 1x1"

Frequency response

90Hz-20KHz


Nominal impedance

8Ω


Rated power

160W


Peak power

640W

Sensitivity (@1W/1m)

93dB


Maximum sound pressure level

115dB

Coverage angle

90°(H)x60°(V)


Protection net

steel net


Wiring method

NL4*1+cable clamp*1


Dimensions (height × width × depth)

724 × 162 × 168mm


Weight

9.1kg

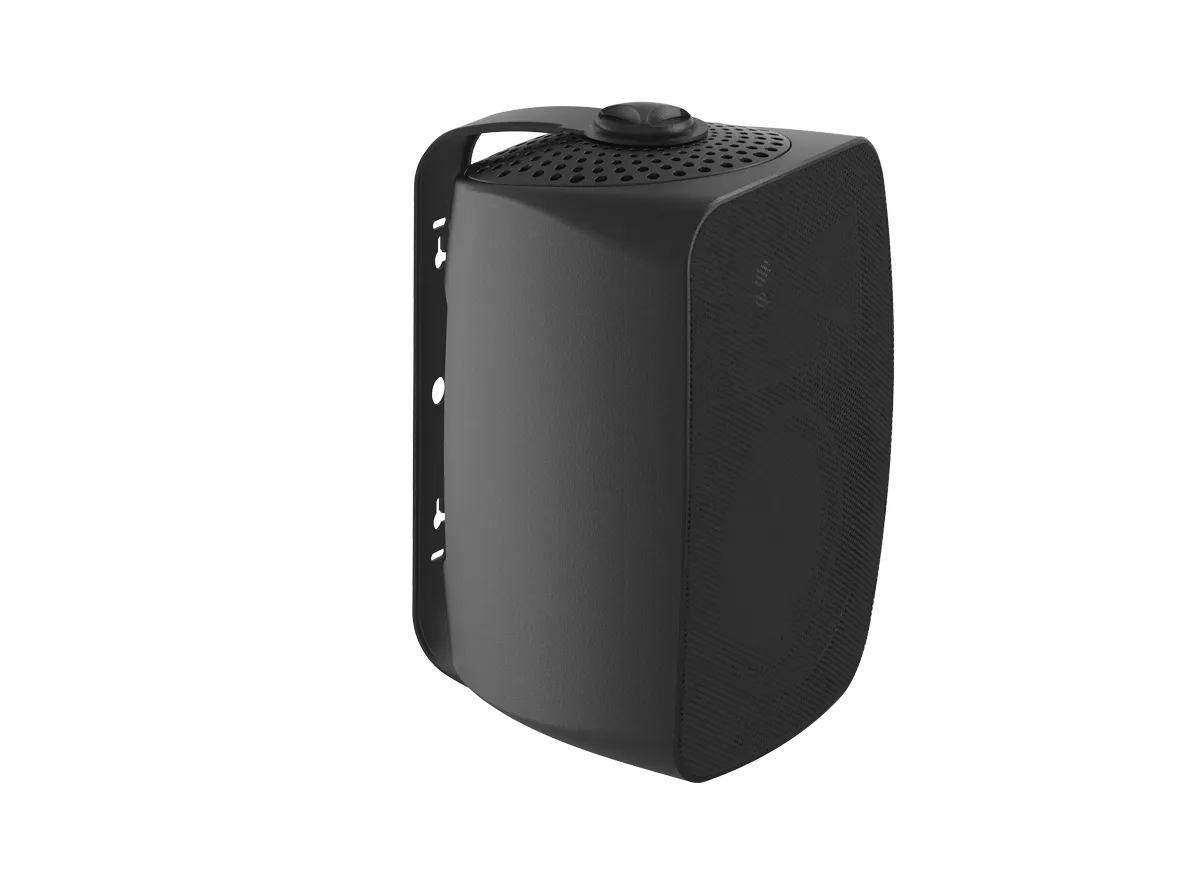

  • PoE Speaker
PDF Download
Power input

802.3af/802.3at/802.3bt compatible, it is recommended to use the 802.3bt standard

Audio

Support Dante protocol

DSP

PEQ, Filter, Limiter

Tweeter

1-inch aluminum dome

Bass

6.5-inch injection molded polypropylene cone basin

Passive Radiator

5.25 inches * 2

Impedance

8 Ω

Rated power (8 Ω)

60W

Sensitivity

88dB 1M \ 1W Frequency

Frequency Response

50Hz-20kHz

Net weight

4.4kg

Dimensions

344.4x220x227.3mm

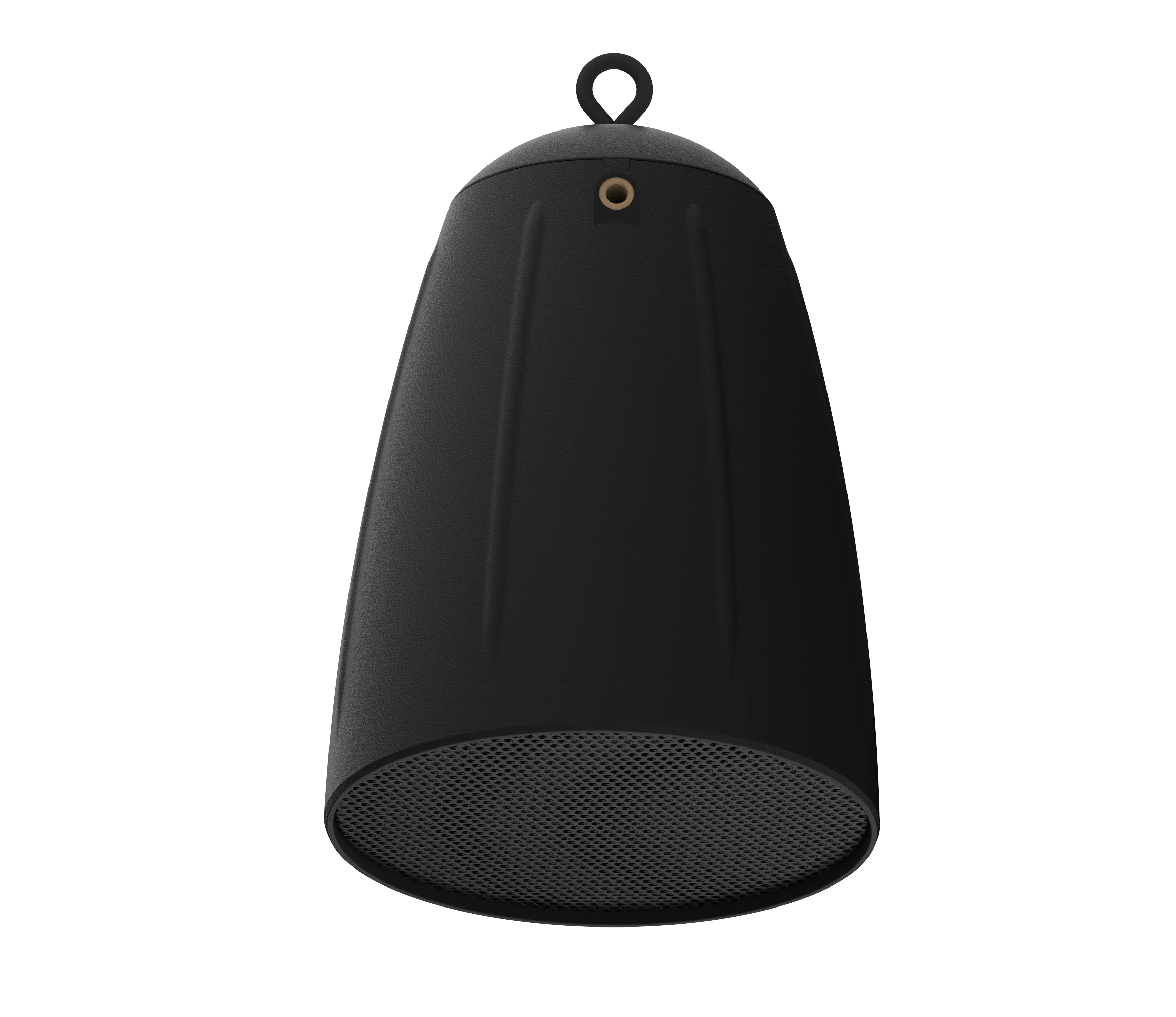

  • PoE Speaker
PDF Download
Power input

802.3af/802.3at/802.3bt compatible, it is recommended to use the 802.3bt standard

Audio

Support Dante protocol

DSP

PEQ, Filter, Limiter

Tweeter

1-inch rotating silk dome

Bass

6.5-inch injection molded polypropylene cone basin

Impedance

8 Ω

Rated power (8 Ω)

60W

Sensitivity

89dB 1M \ 1W

Frequency Response

75Hz-20kHz

Net weight

2.85kg

Dimensions

209.9x292.8mm

Highlights of PoE Speaker


RPO65

  • Full-range coaxial ceiling speakers are fixed-impedance active ceiling speakers suitable for shops, conference rooms, hotels, cruise ships, and other places;

  • Built-in power amplifier, digital signal processing function;

  • The speakers can be installed in two ways: embedded installation and hoisting, realizing an optimized design for convenient installation on high and low floors;

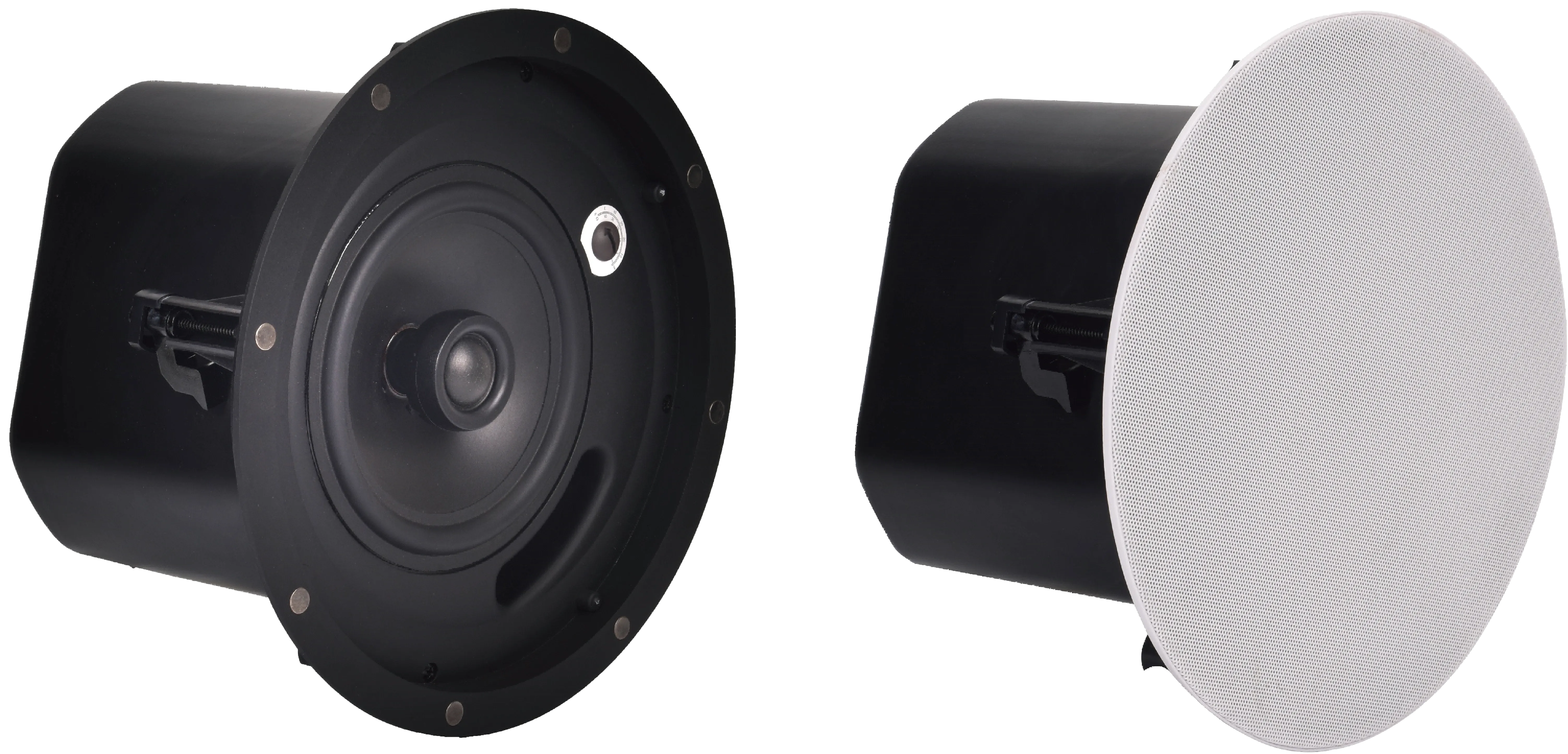

RPO80

  • Full-range coaxial ceiling speakers are fixed-impedance active ceiling speakers suitable for shops, conference rooms, hotels, cruise ships, and other places;

  • Built-in power amplifier, digital signal processing function;

  • The speakers can be installed in two ways: embedded installation and hoisting, realizing an optimized design for convenient installation on high and low floors;



RPO43

  • Designed for use in language sound reinforcement systems such as small and medium-sized video conference rooms, digital courts, conference rooms, lecture theaters, etc., as well as background music systems in various architectural spaces such as churches, museums, airports, stations, squares;

  • transportation hubs, and square public areas;

  • Protection functions: over-current protection/over-temperature protection/overload/load short-circuit protection;

  • Audio transmission protocol: Dante;

  • Built-in power amplifier, digital signal processing function;



RPO25


  • Audio transmission protocol: Dante;

  • Built-in power amplifier, digital signal processing function;

  • Double 5.25-inch sound column;

  • 25-core tweeter, dual 5.25-inch mid-low frequency units;

  • High-density fiberboard box with raindrop paint treatment on the surface;

  • The sound is clear and pure, and the vocals are full;

  • Supports various installation methods such as ceiling hanging/horizontal hanging/back support;



RPO45


  • Product features: Audio transmission protocol: Dante;

  • Built-in power amplifier, digital signal processing function;

  • 4x5.25 inch sound column;

  • 25-core tweeter, 4x5.25-inch mid-low frequency unit;

  • High-density fiberboard box with raindrop paint treatment on the surface;

  • The sound is clear and pure, and the vocals are full;

  • Supports various installation methods such as ceiling hanging/horizontal hanging/back support;


PFS-6.5


  • Design background music and sound reinforcement systems for various indoor and outdoor building spaces such as commercial public areas.;

  • Can be used in harsh environments such as rain, salt spray, and high temperatures;

  • Support horizontal and vertical installation;

  • It adopts a dual passive radiator design, it can provide good low-frequency dynamics even without a subwoofer;


PSS-6.5


  • Suitable for sky amplification in spaces without suspended ceilings;

  • Can be used in harsh environments such as rain, salt spray, and high temperatures;

  • The installation kit can be optionally equipped with outdoor grass installation methods and indoor and outdoor wall mounted installation accessories;
