DSP Microphone - NMC

The NMC Series is a fully digital, highly integrated conference audio platform. The system consists of the NMC101D conference unit, NMC16 audio switching hub, and NMC100D conference processor. It is designed to deliver an audio solution that offers reduced cabling, simplified installation, efficient setup, and flexible deployment. Ideal for professional conferencing environments, the NMC Series meets the growing demands for digitalization, modularity, and scalability, while ensuring high stability and superior audio quality.
Specification
Highlights

Specification of DSP Microphone - NMC

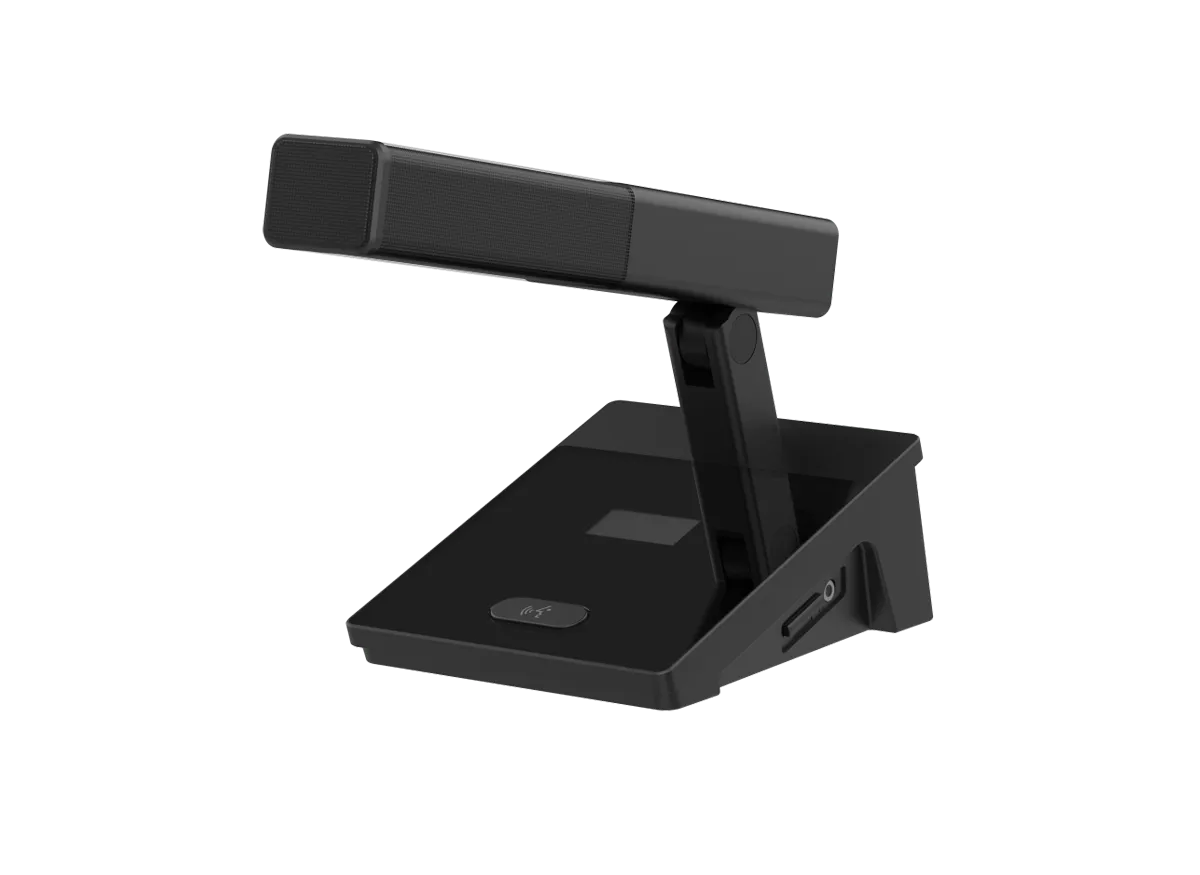

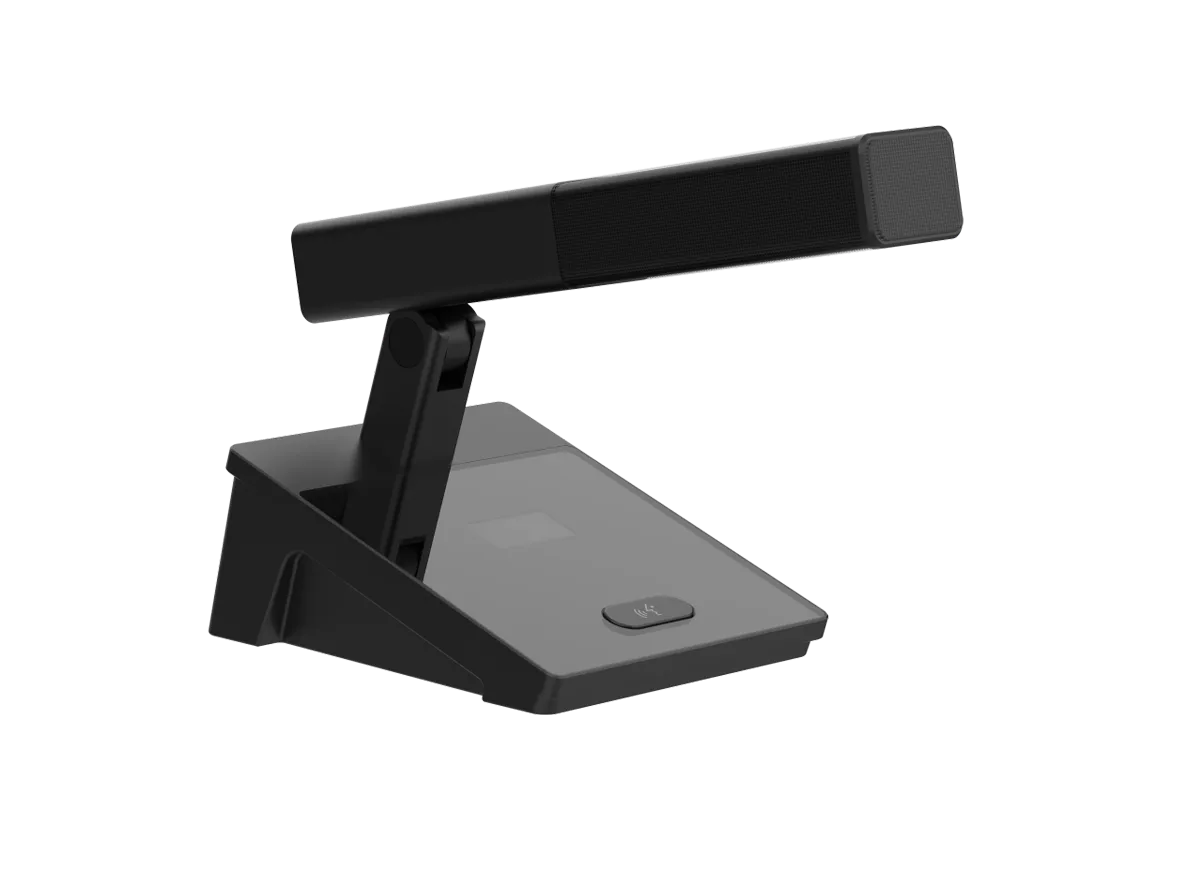

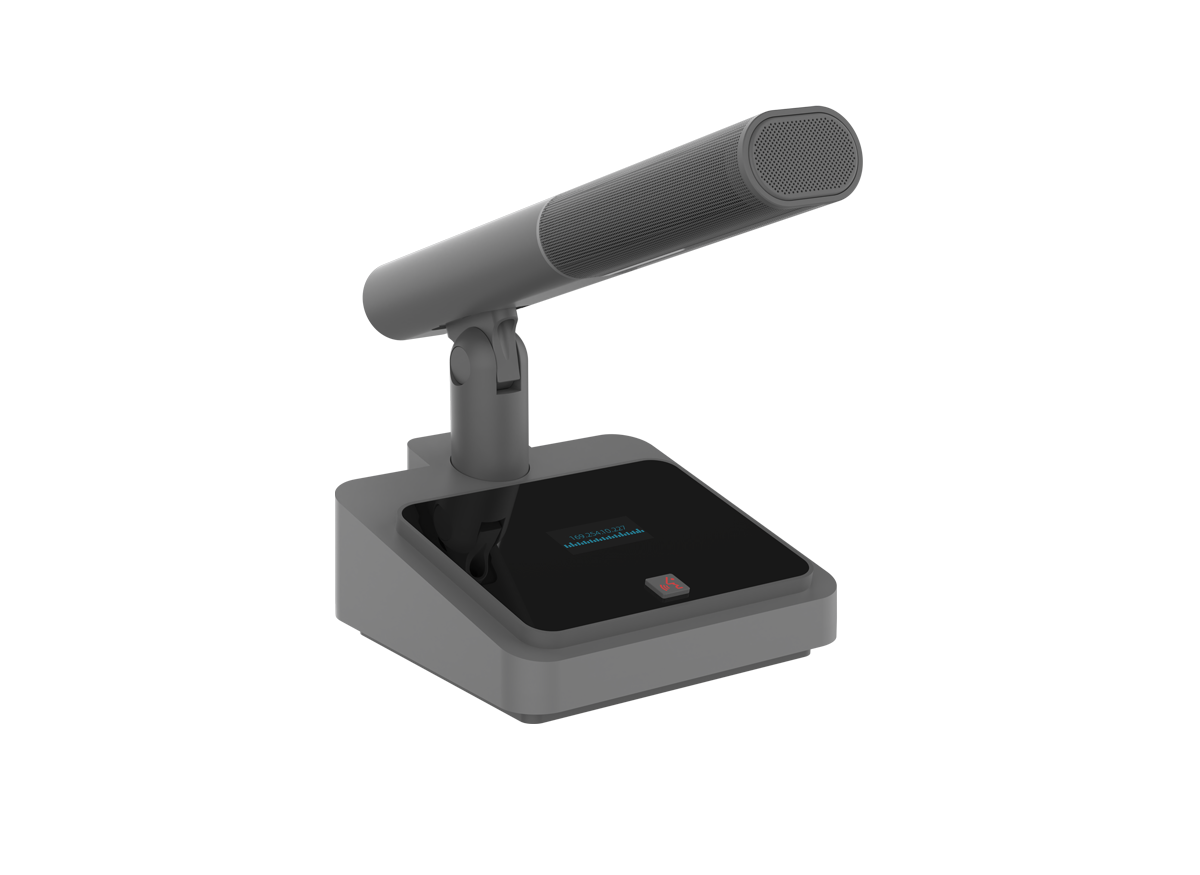

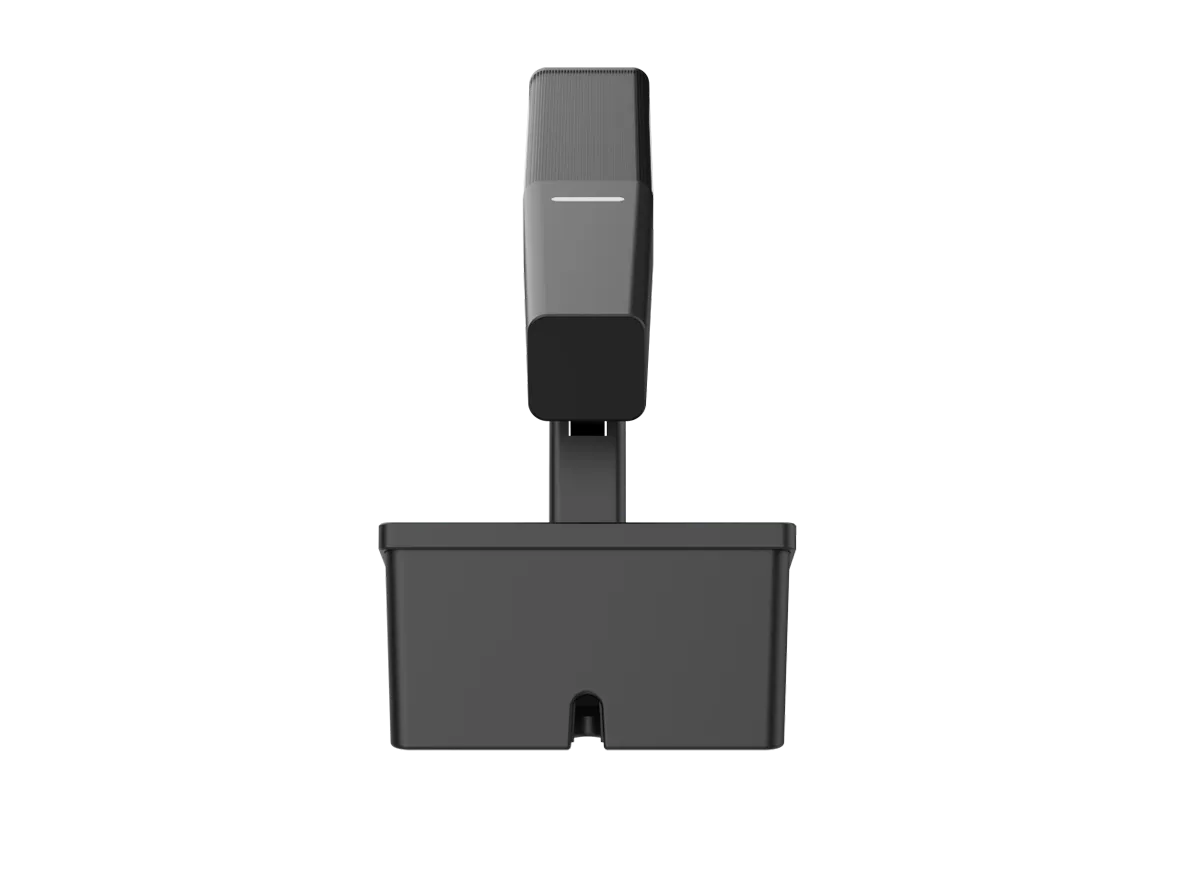

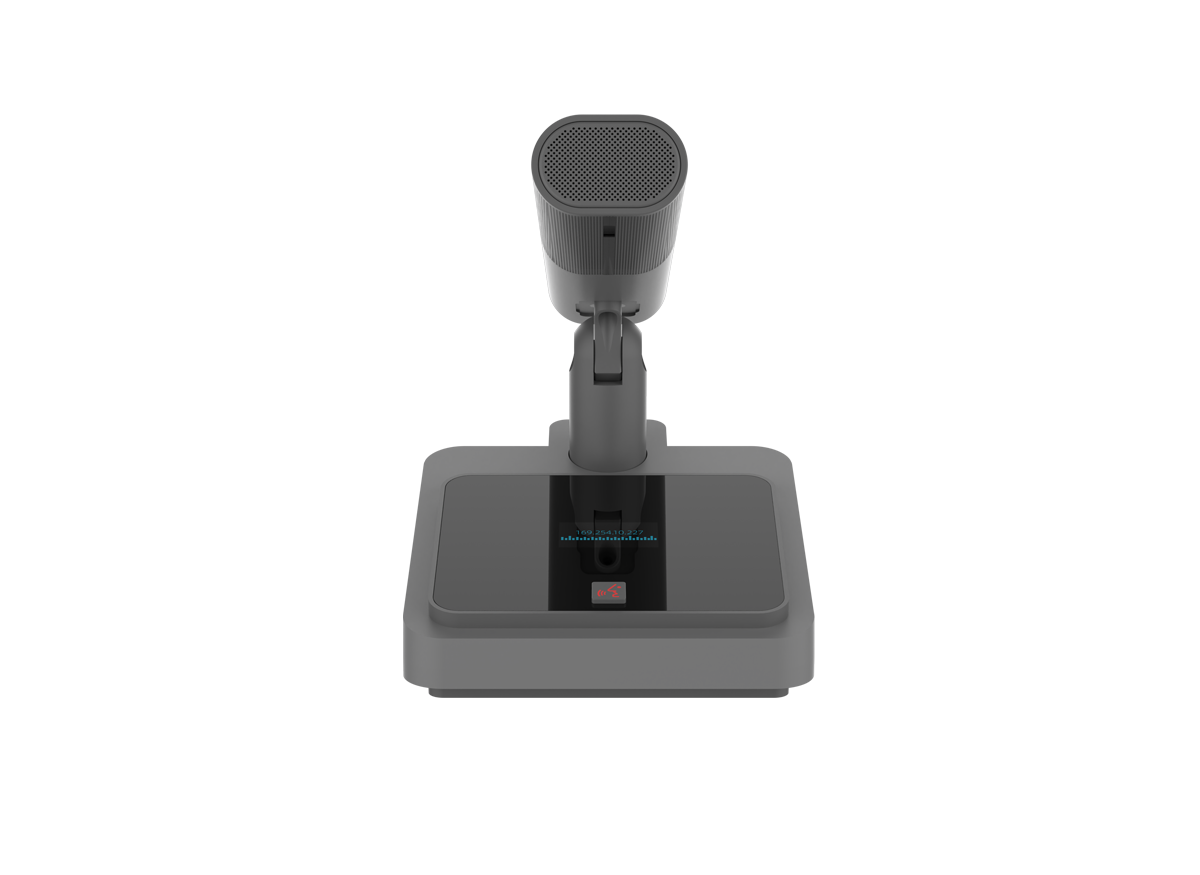

NMC101D DSP Microphone

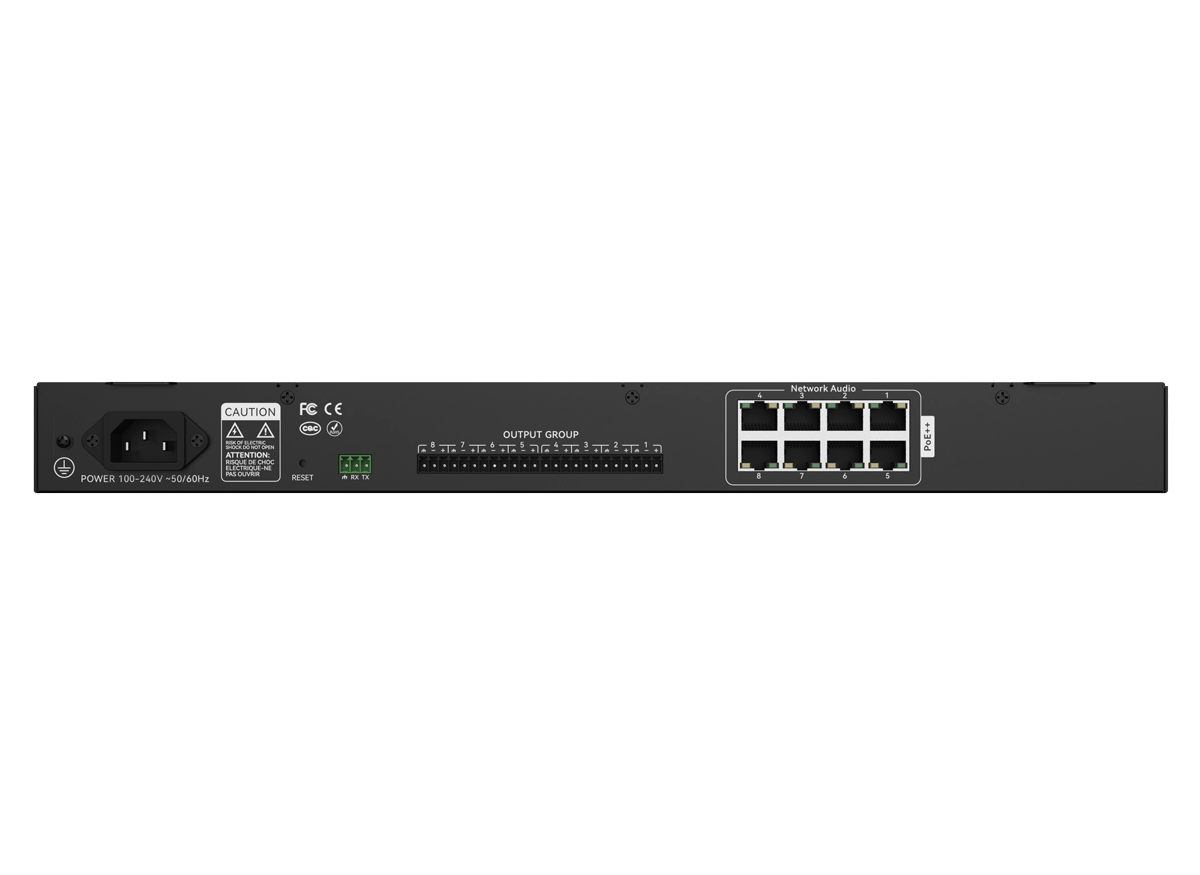

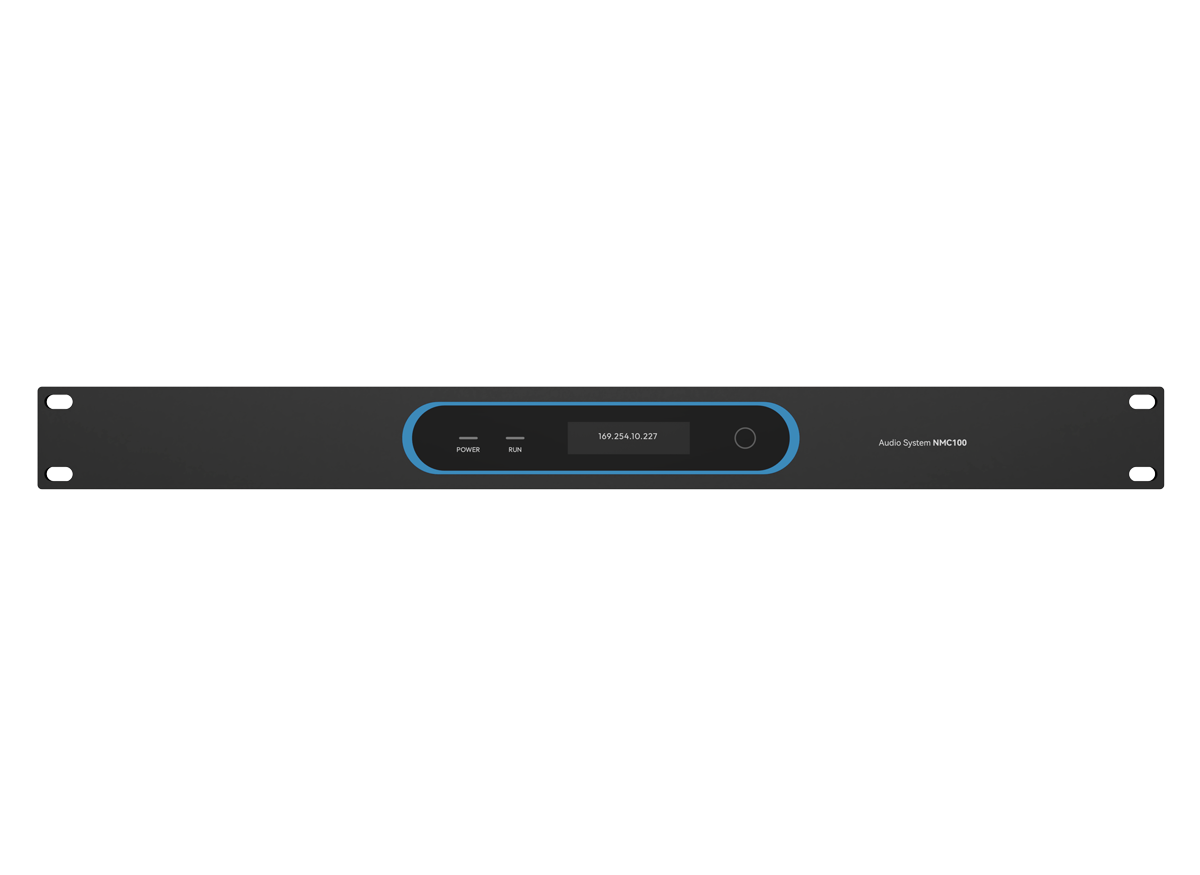

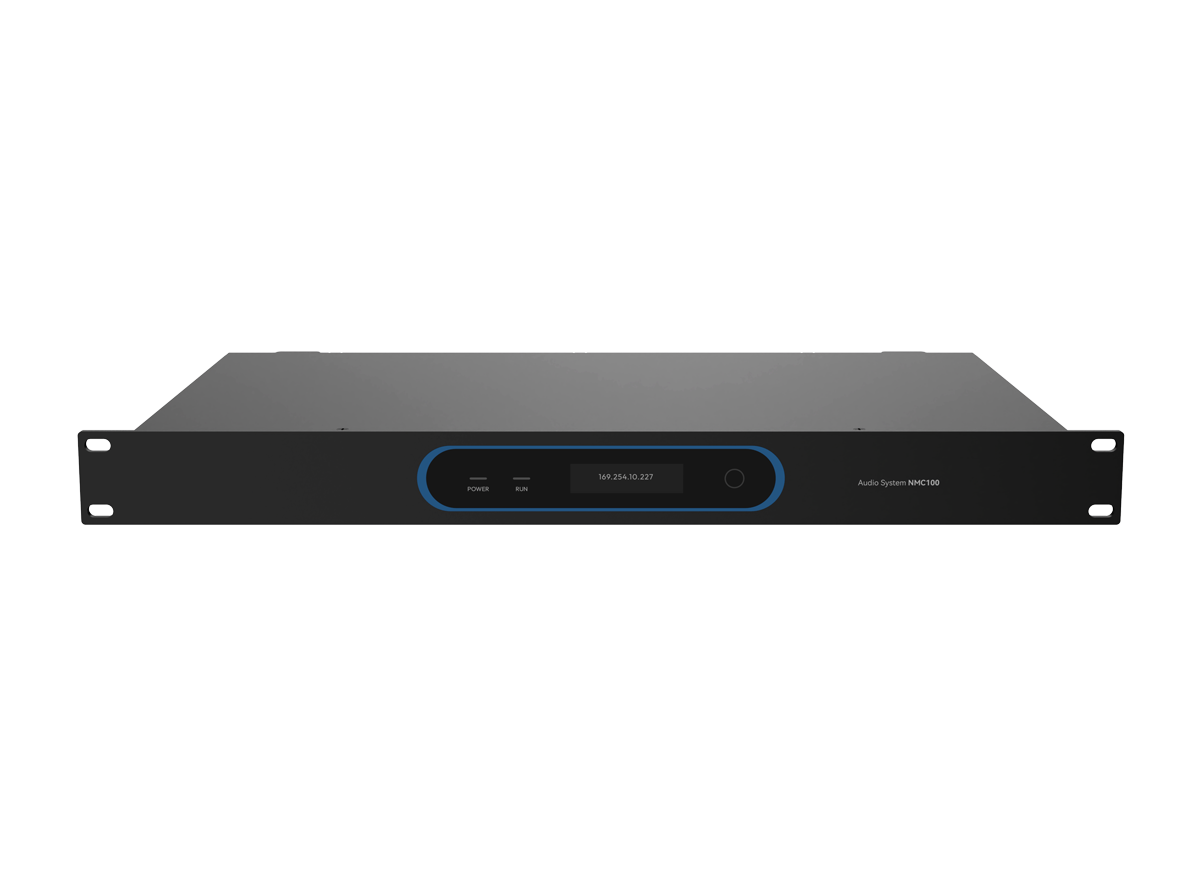

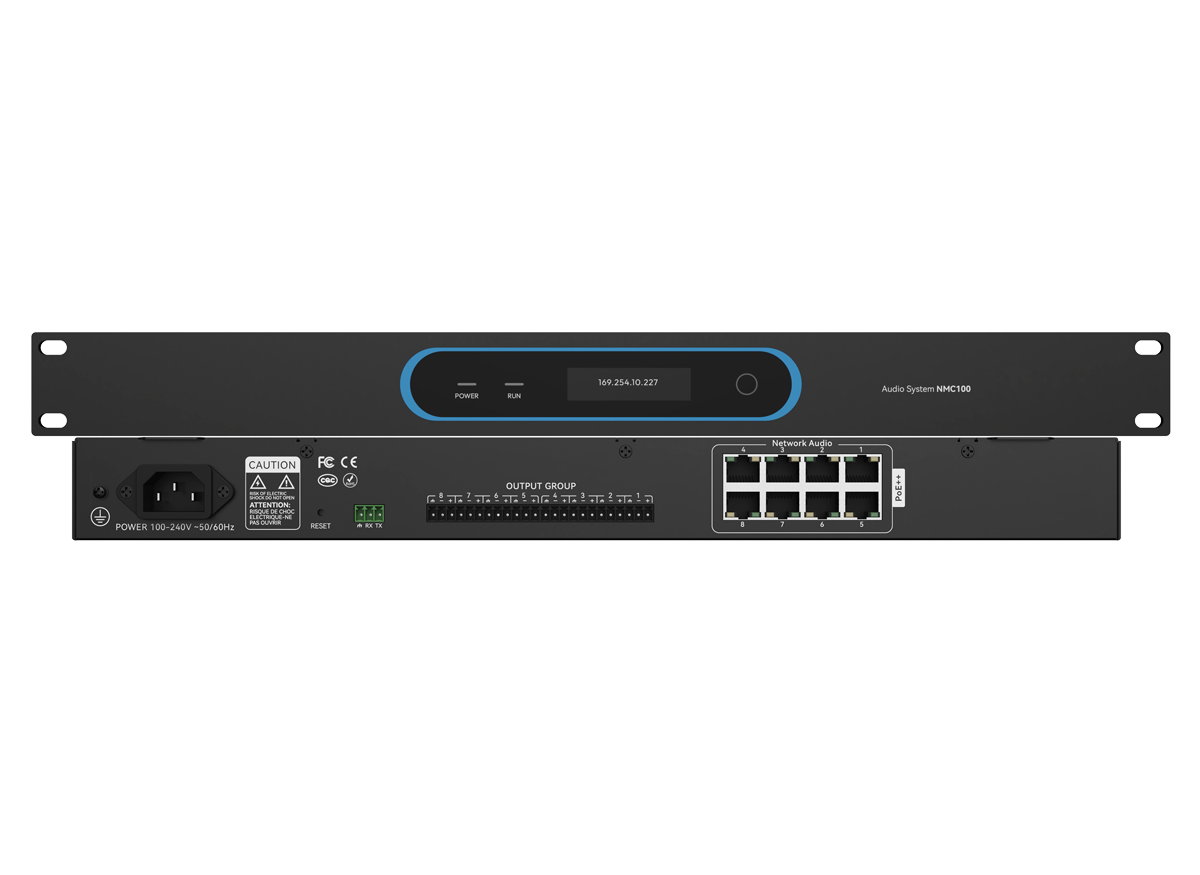

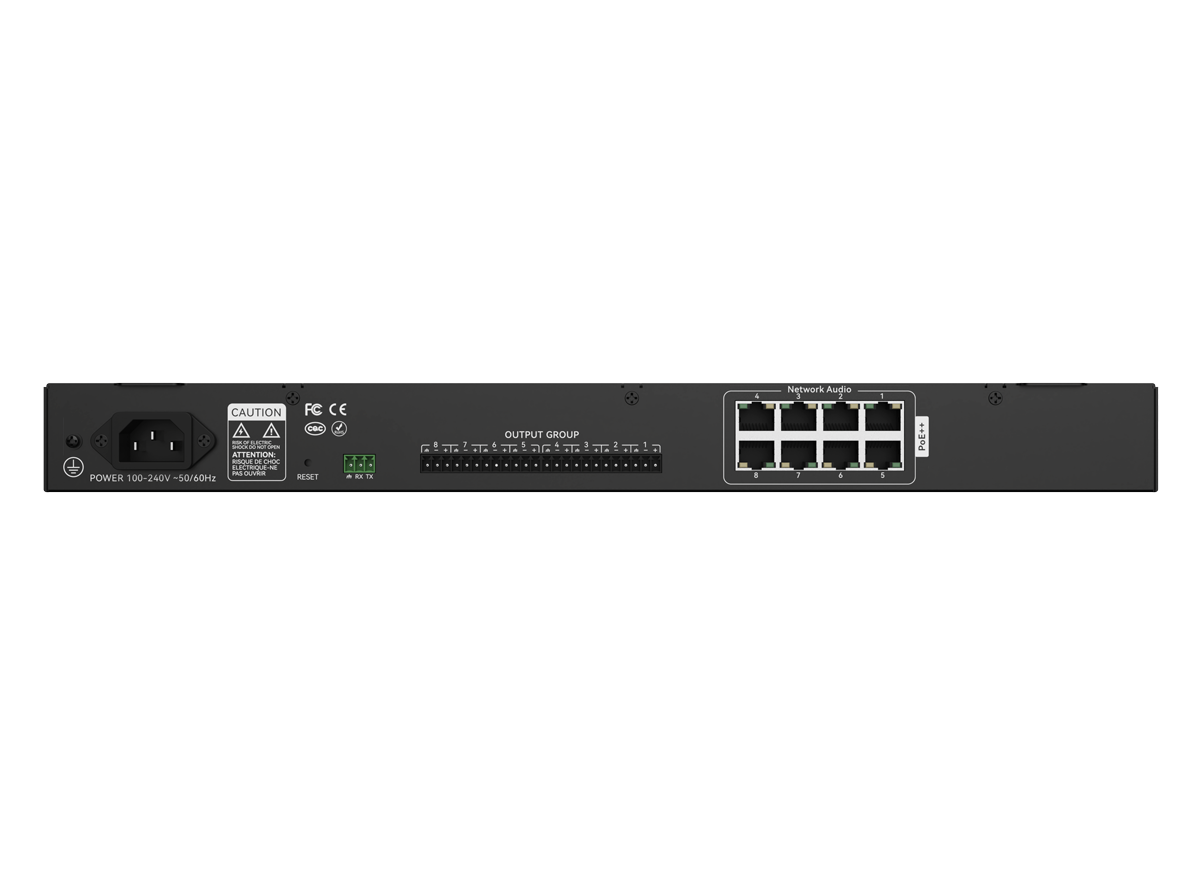

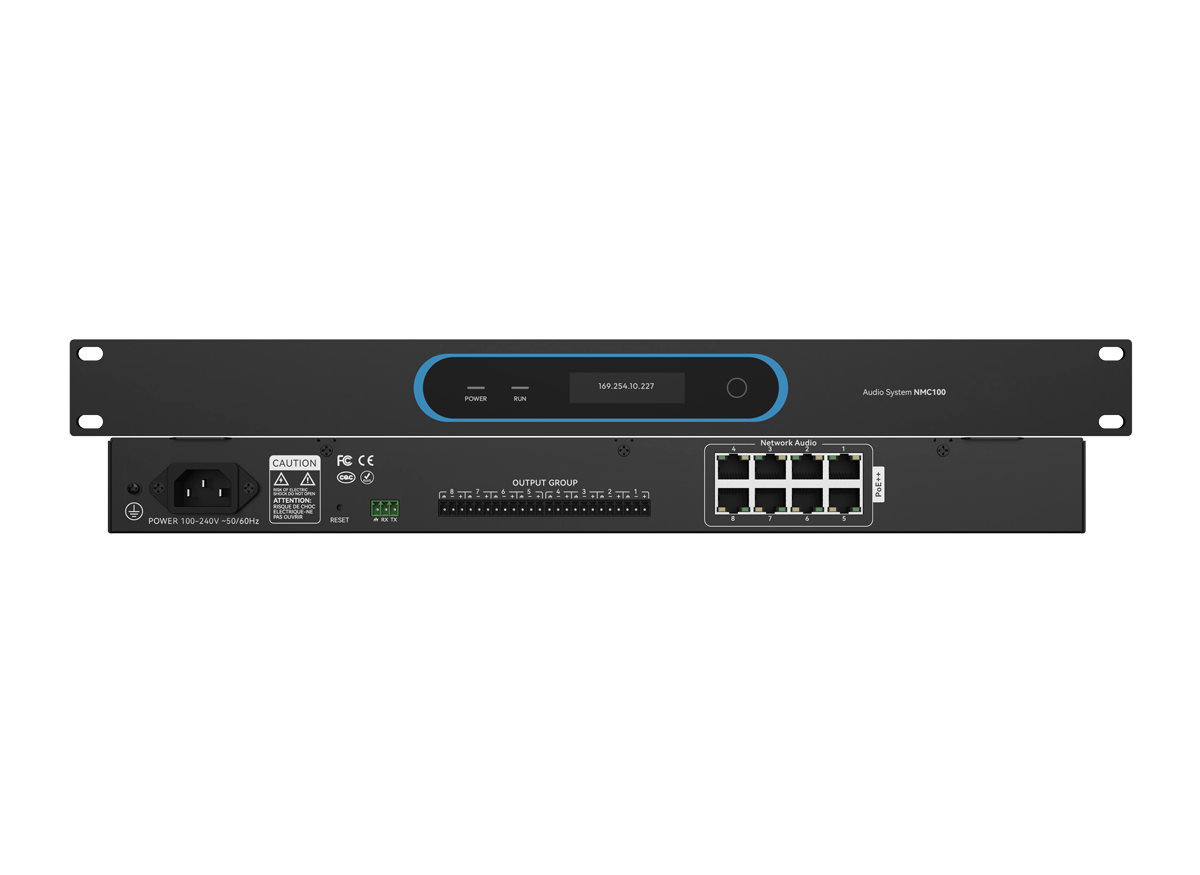

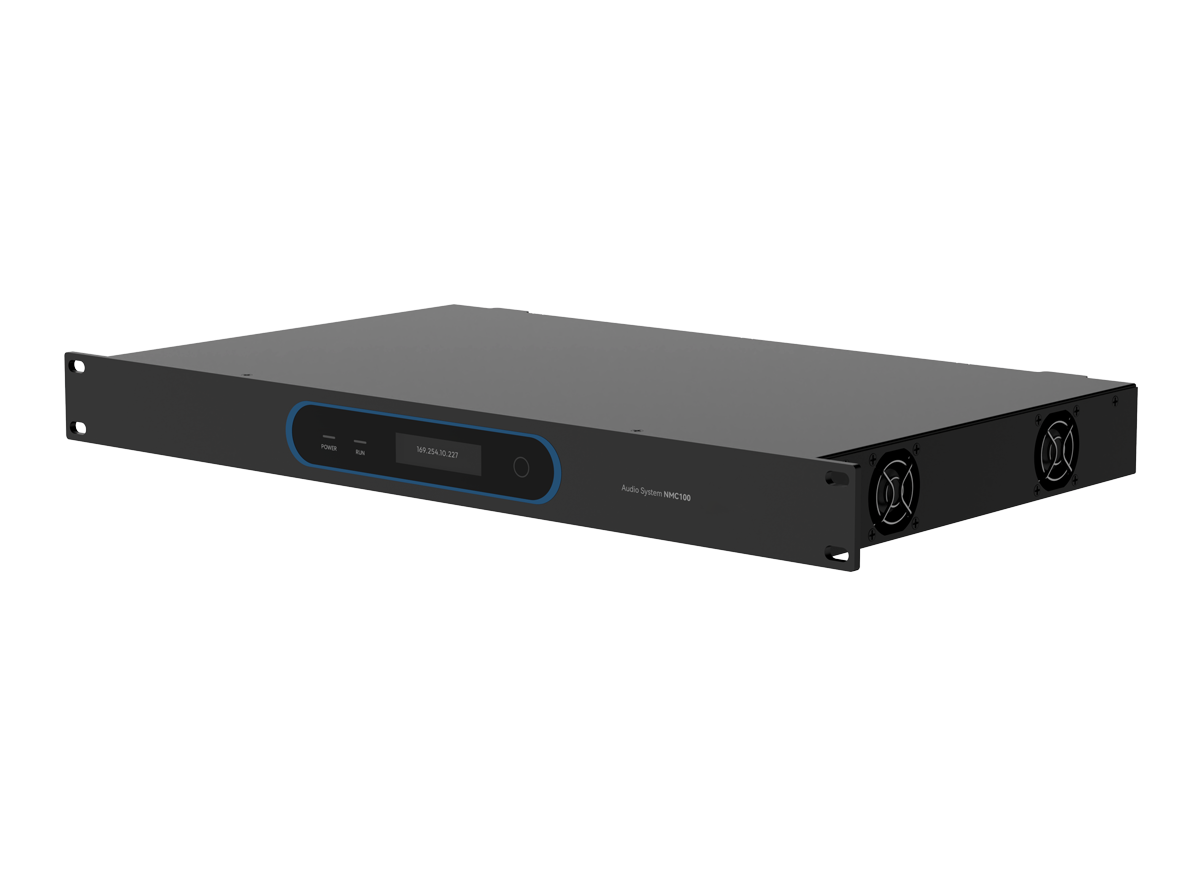

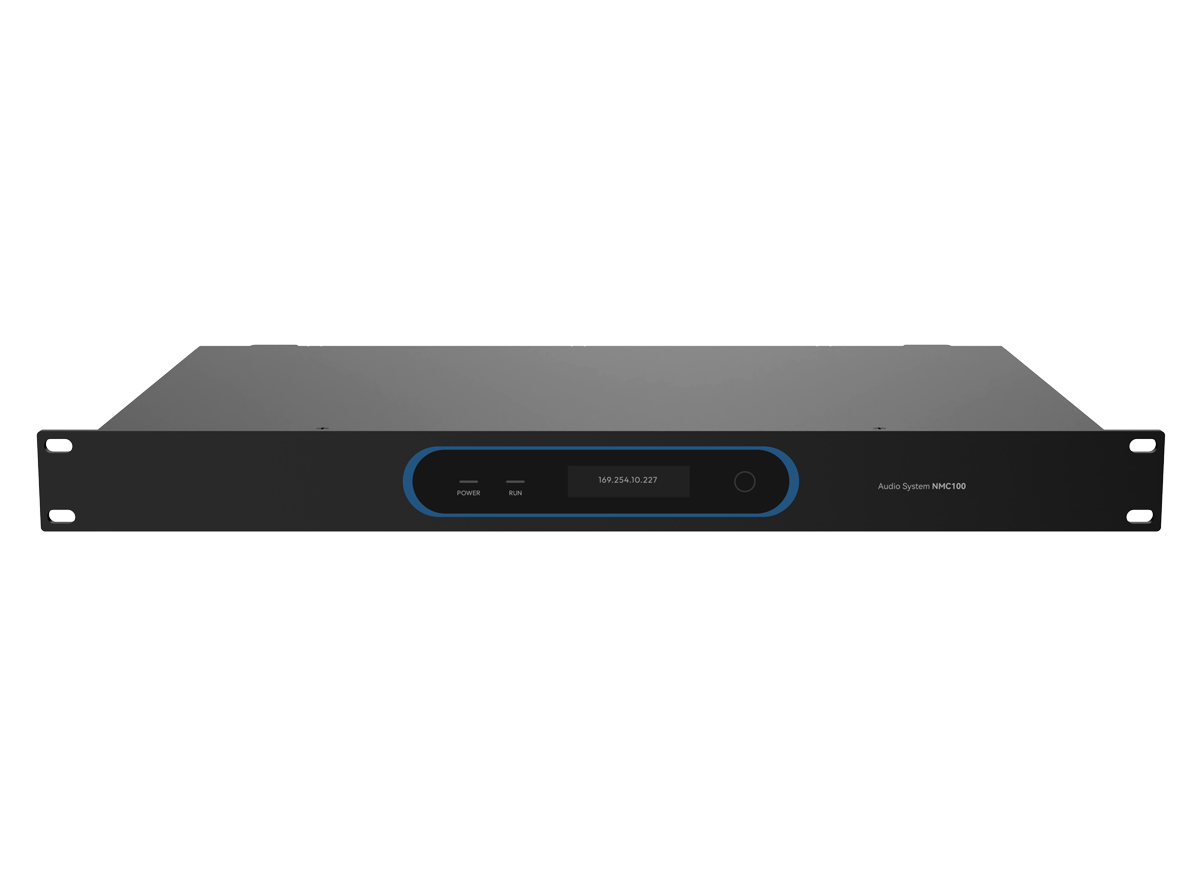

NMC100D Smart Audio Management Host
  • DSP Microphone - NMC
  • DSP Microphone - NMC
  • DSP Microphone - NMC
  • DSP Microphone - NMC
Polar Pattern

Super Cardioid

Processor

Made in China

Sampling Rate/Bit Depth

48K, 24bit

Phantom Power

48V 10ma

Frequency Respond

20-20kHz

Sensitivity

-36 dB

Preamp Adjustment

0-42dB

Output Impedance

<200Ω

Input Dynamic Range

97dB

Output Dynamic Range

97dB

Signal-to-Noise Ratio

106 dB @4dBu

Equivalent Input Noise

16 dB (A-weighted)

Power Supply

PoE

Input Impedance (Balanced Connection)

3.6KΩ

Latency

<4ms

Operation Guaranteed Temperature Range

0-40℃

Weight

1.05Kg

Microphone Pole Size (LxWxH)

220x34x23(mm)

Output impedance (balanced connection)_copy20250721

600Ω

  • DSP Microphone - NMC
  • DSP Microphone - NMC
  • DSP Microphone - NMC
  • DSP Microphone - NMC
  • DSP Microphone - NMC
Processor

ADI SHARC 21569

Frequency response

20-20kHz ±3dB

Sampling Rate/Bit Depth

48kHz/24bit

Maximum level

20dBu

Input gain

0-48dB

Input dynamic range

≥115dB


Phantom power

+48V/100mA


Output dynamic range

≥115dB

THD+N

-97dB 1kHz (unweighted)


Input impedance (balanced connection)

5.4kΩ

Output impedance (balanced connection)

300Ω

System Delay

<3ms

Operating Power Supply

AC110~240V,50Hz/60Hz

Dimensions (W x D x H)

482 x 260 x 45mm

Shipping Weight

4KG

Ambient operating temperature

0-40℃

Highlights of NMC Series


1.High and Low Pass Filter

Remove unwanted frequencies.

2.12 Band PEQ

Adjust the frequency of the signal to sound better in different applications.

3.2-Band Split Compressor

Help control timbre difference caused by proximity effect.

4.8-Notch Adaptive Feedback Control

Discriminate and eliminate feedback dynamically.

5.Dante network through PoE

Mic Pre-amp Gain  42dB of Gain with 1dB step

6.Remote Control On/Off  Synchronize with physical button.

7.Multi Scene Presets can be saved for each microphone  (up to 15 presets).
