1 RJ-45 Dante™, Cat-6, 3-Pin Euroblock Phoenix Connector
30W/8Ω; 60W/4Ω (Peak Power)
Volume control, mute, limiter, equalizer, channel selection
100M/1000Mbps
20Hz-20kHz
<0.30%
>100dB
<200uV
>76%
Overcurrent, overtemperature, and overload protection
Natural convection cooling
1 RJ-45 AES67, Cat-6, 5-Pin Euroblock Phoenix Connector
2x 30W/8Ω; 2x 60W/4Ω (Peak Power)
100M/1000Mbps
20Hz-20kHz
<0.30%
>100dB
<200uV
>76%
Overcurrent, overtemperature, and overload protection
Natural convection cooling
1 RJ-45 Dante™, Cat-6, 3-Pin Euroblock Phoenix Connector
60W/8Ω; 120W/4Ω (Peak Power)
Volume control, mute, limiter, equalizer, channel selection
100M/1000Mbps
20Hz-20kHz
<0.30%
>100dB
<200uV
>76%
Overcurrent, overtemperature, and overload protection
Natural convection cooling
Safe Power Supply;
Integrated Functions;
Fanless Design;
Advanced Management;
Built-in Amplification;
Customizable Audio Settings;

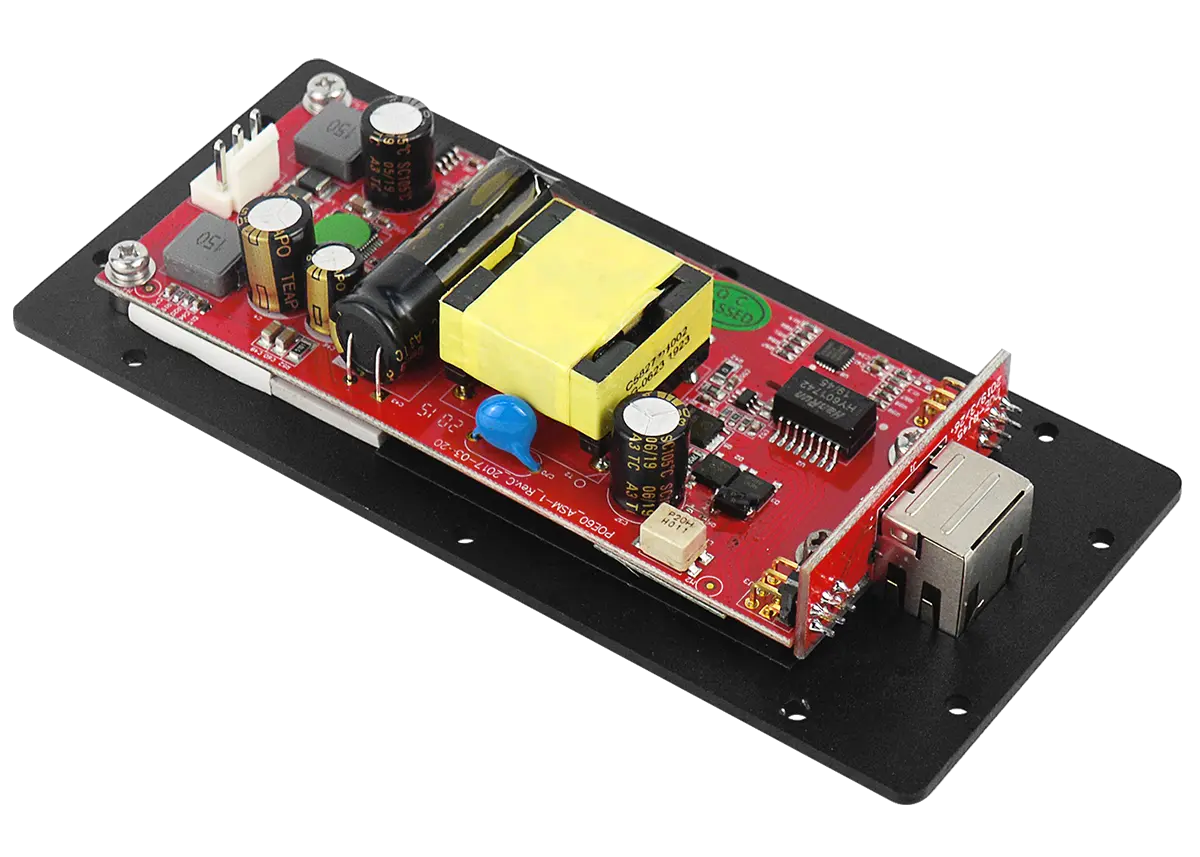

Our Dante amplifier module is the perfect core for building a scalable and high-quality Dante poe speaker system. With multiple power options available, you can select the ideal model to match your speaker requirements and coverage area:
PoE60ASM-1: Ideal for background music and vocal reinforcement in offices, retail shops, and classrooms.

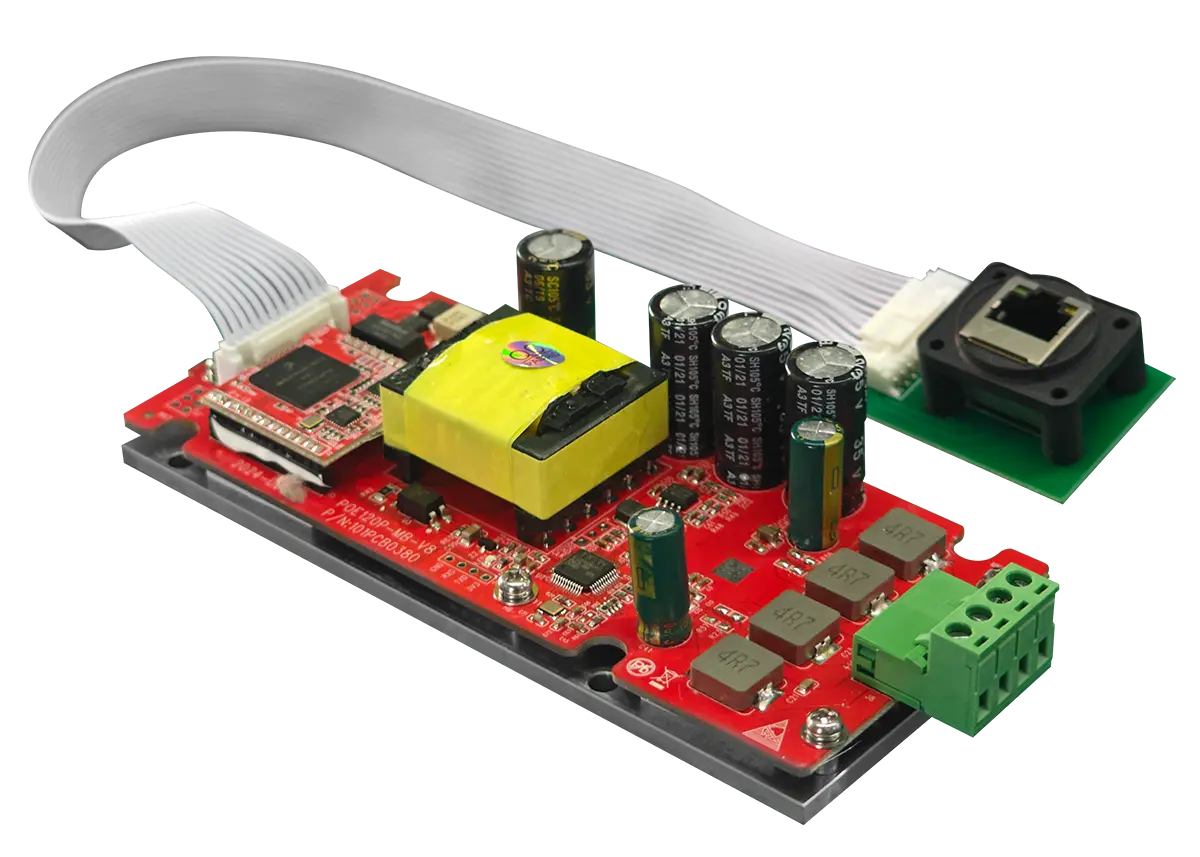

PoE60-2A ASM: Provides flexible power distribution for two zones or speakers.
PoE120ASM: Offers higher power for larger spaces or more demanding speaker installations, ensuring clear audio even in noisy environments.
| Feature / Model | PoE60ASM-1 | PoE60-2A ASM | PoE120ASM |
| Output Power (RMS) | 21W @ 8Ω / 60W @ 4Ω (Peak) | 2 x 30W @ 8Ω / 2 x 60Ω @ 4Ω | 120W @ 4Ω |
| Power Supply | PoE / PoE+ / PoE++ (Type 4) | PoE++ / External 24V DC | PoE++ / High-Current DC |
| Connectivity | 1 x RJ45 (Dante), 3-pin Phoenix | 1 x RJ45 (Dante), Dual Zone | 1 x RJ45 (Dante), High Power |
| Efficiency | >76% (Class D) | >80% (Class D) | >85% (High Efficiency) |
| SNR / THD | >100dB / <0.30% | >100dB / <0.25% | >105dB / <0.15% |
| Cooling | Fanless Natural Convection | Fanless Design | Advanced Thermal Dissipation |
Seamless Single-Cable Integration: Our module utilizes Audinate’s Dante protocol, combining DC power (PoE++), digital audio signals, and control data into a single CAT6 cable. This reduces wiring complexity and installation costs by up to 50%.
Compact & Versatile Form Factor: Designed as a PoE Dante Preamp and Amplifier in one, its small footprint allows for direct installation inside ceiling speakers, wall-mount enclosures, or behind display screens.
Intelligent Thermal Management: The fanless design ensures 100% silent operation and long-term reliability in fixed installations, preventing dust buildup—a critical factor for retail, office, and classroom environments.
Flexible DSP Control: Built-in digital processing allows for precise Volume Control, Limiter, and 5-band EQ settings via the network, ensuring the audio performance is perfectly tuned to the room’s acoustics.
Yes, our Dante PoE amplifier is designed specifically to convert any standard passive speaker into a networked Dante speaker. Simply connect the module to your Dante network via RJ45 and wire the output to your 4Ω or 8Ω passive speaker.
To achieve the maximum 120W output, we recommend using a PoE++ (Type 4, 90W) switch or a dedicated 24V-48V DC power supply. For lower power models like the 60W version, a standard PoE+ (Type 2) source is sufficient.
Absolutely. Our modules are fully recognized by Audinate’s Dante Controller, allowing for easy routing, latency management, and firmware updates across the network.
